Mist Elimination Products

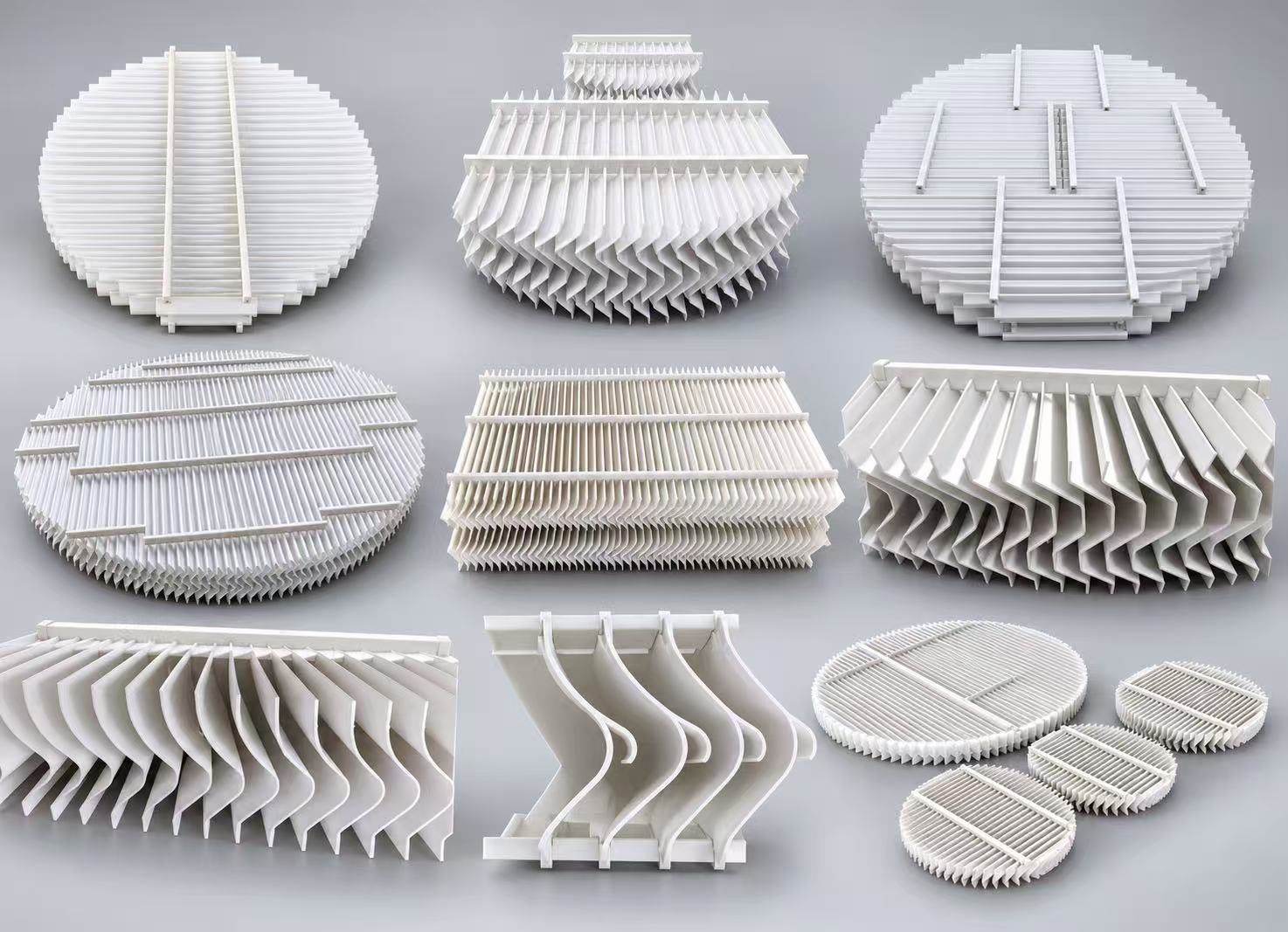

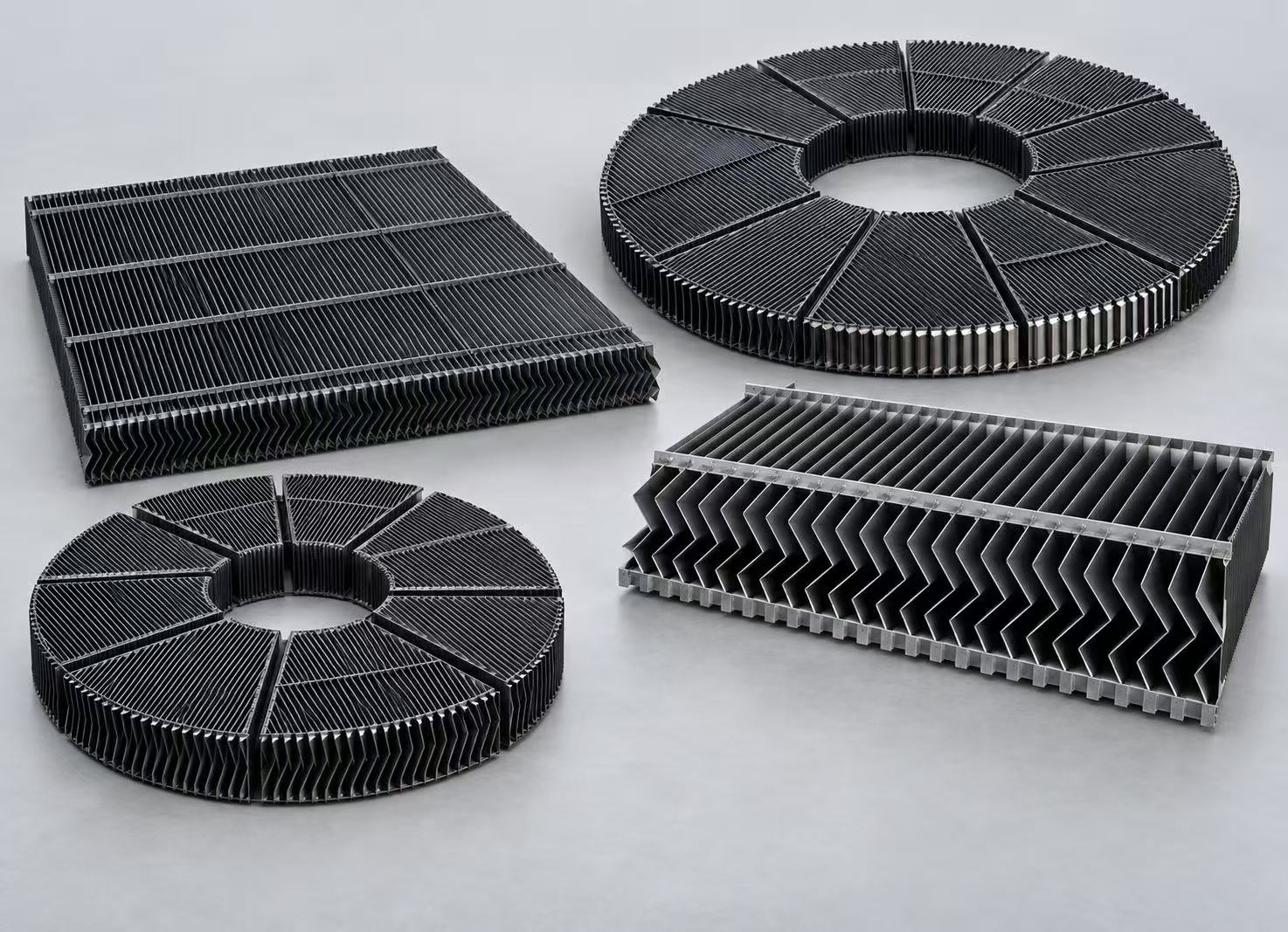

Demister Vane
Chevron-vane gas-liquid separator with high flow capacity, low pressure drop and broad corrosion-resistant material options.
Mist Elimination Products Series
Demister Vane
Demister vane, also known as a vane mist eliminator, separates liquid droplets from gas. When mist-laden gas passes through bent vane channels, the airflow changes direction sharply and droplets collide with the vane surfaces under inertia, coalesce and drain downward. Stainless steel, PP, PVDF and PTFE versions cover a wide range of temperature and corrosion conditions.
Stainless steel 304 / 316LUp to 450℃; weak-acid/alkali and high-temperature service
Polypropylene (PP)Up to 90℃; low-temperature dilute-acid scrubbers
PVDFUp to 140℃; chlorine-containing gas and pickling
PTFEUp to 260℃; strong acids, alkalis and solvents
Product Description
Demister vane, also known as a vane mist eliminator, separates liquid droplets from gas. When mist-laden gas passes through bent vane channels, the airflow changes direction sharply and droplets collide with the vane surfaces under inertia, coalesce and drain downward. Stainless steel, PP, PVDF and PTFE versions cover a wide range of temperature and corrosion conditions.
Key Features
Low gas resistance and pressure drop
Low gas resistance and pressure drop
Wide corrosion-resistant material selection
Wide corrosion-resistant material selection
Large flow channels resist viscous-slurry blockage
Large flow channels resist viscous-slurry blockage
Supports online spray washing
Supports online spray washing
Stable mechanical performance
Stable mechanical performance
Technical Specifications
| Parameter | Demister Vane | Custom Range |
|---|---|---|
| Stainless steel 304 / 316L | Up to 450℃; weak-acid/alkali and high-temperature service | Customizable on request |
| Polypropylene (PP) | Up to 90℃; low-temperature dilute-acid scrubbers | Customizable on request |
| PVDF | Up to 140℃; chlorine-containing gas and pickling | Customizable on request |
| PTFE | Up to 260℃; strong acids, alkalis and solvents | Customizable on request |
Applications
Wet flue-gas desulfurization

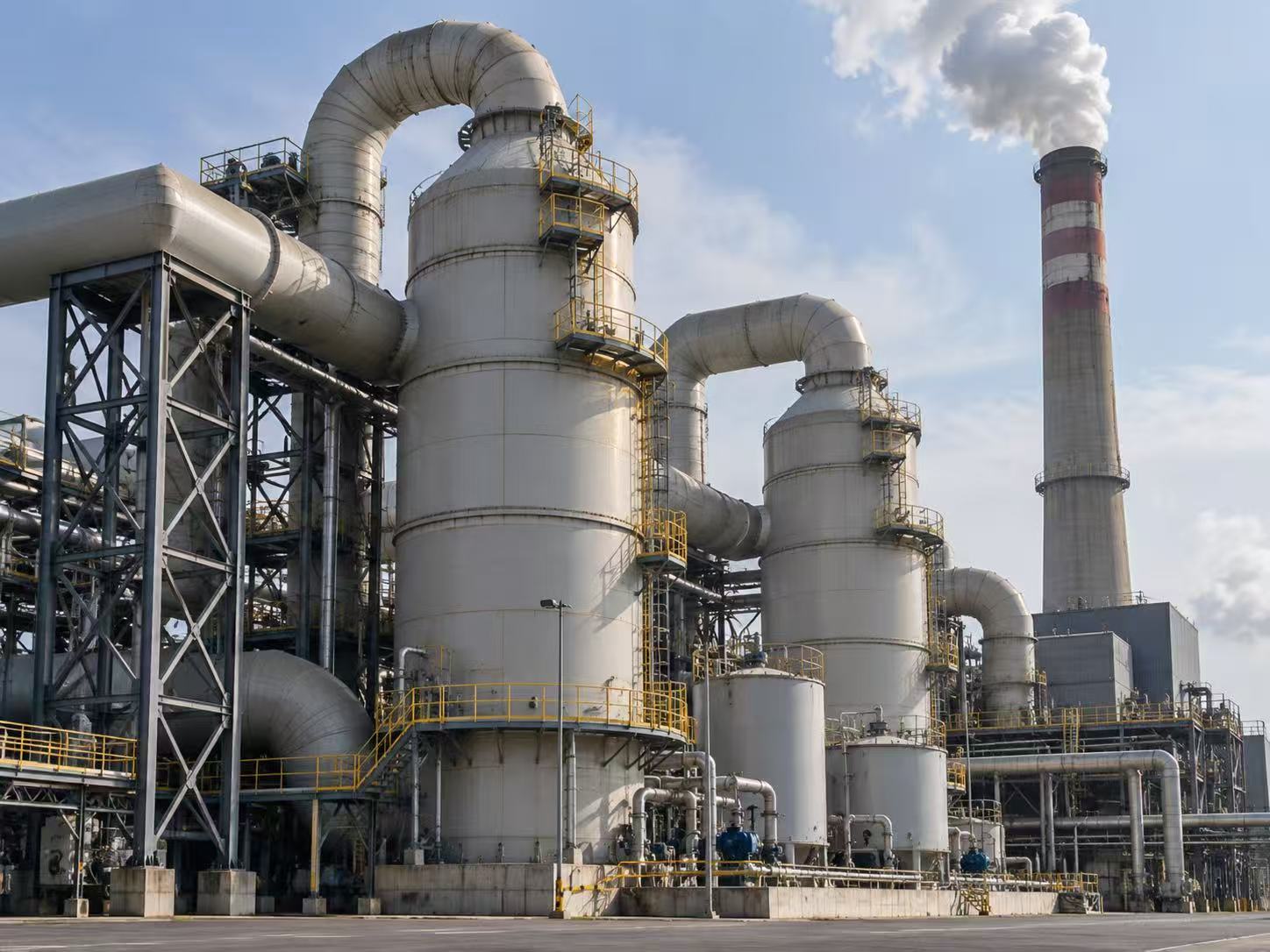

Chemical production

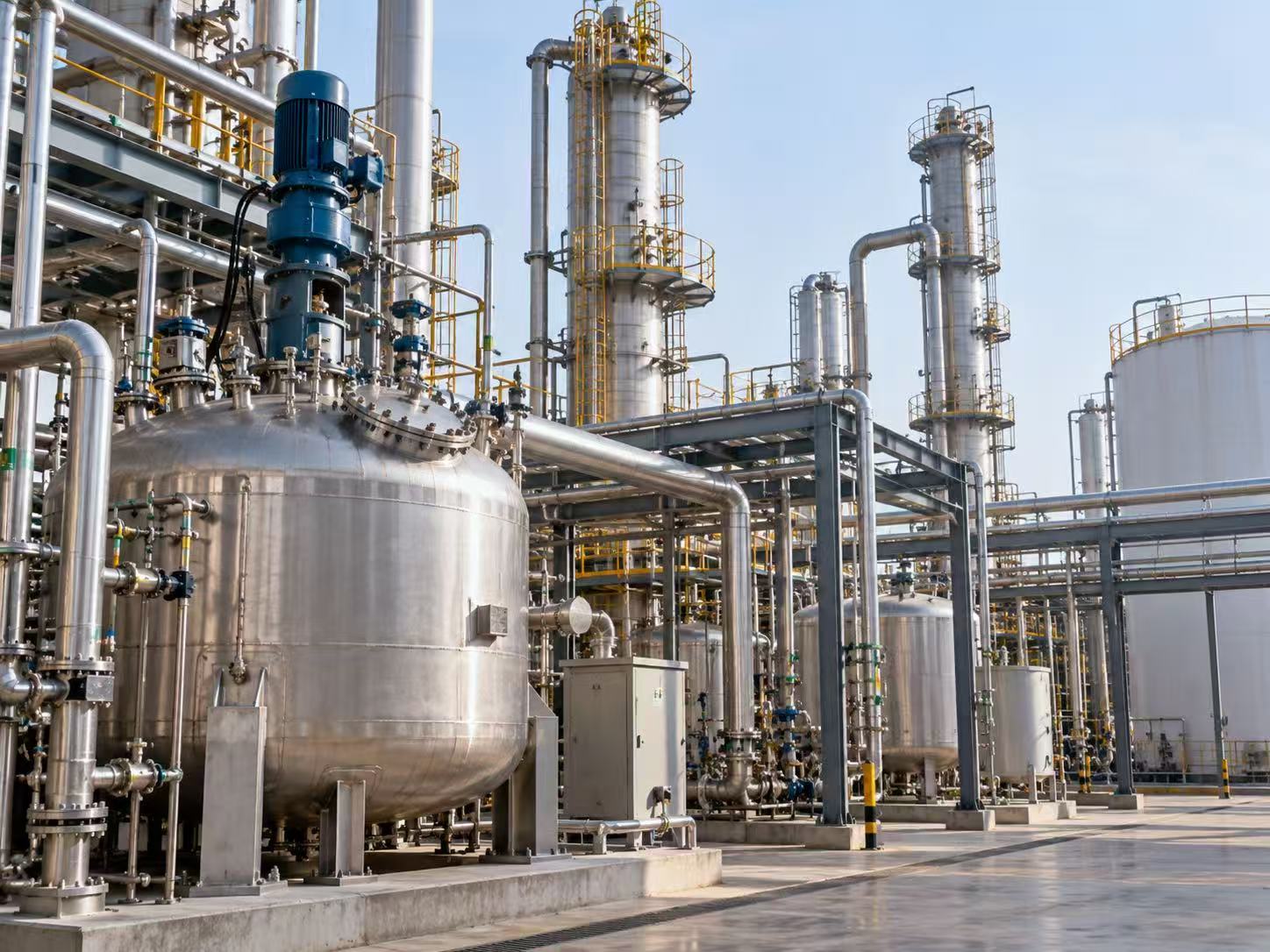

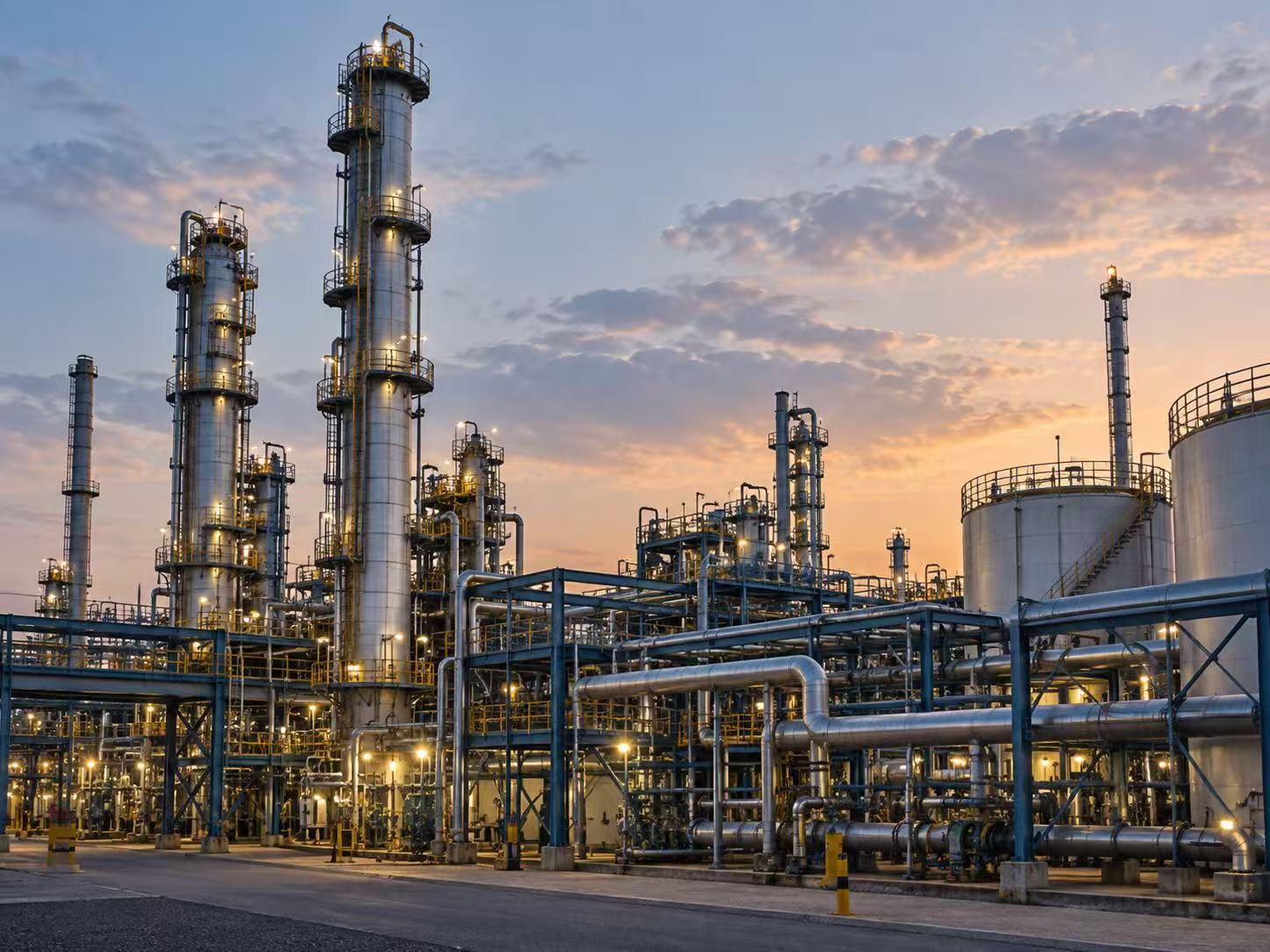

Petrochemical processing

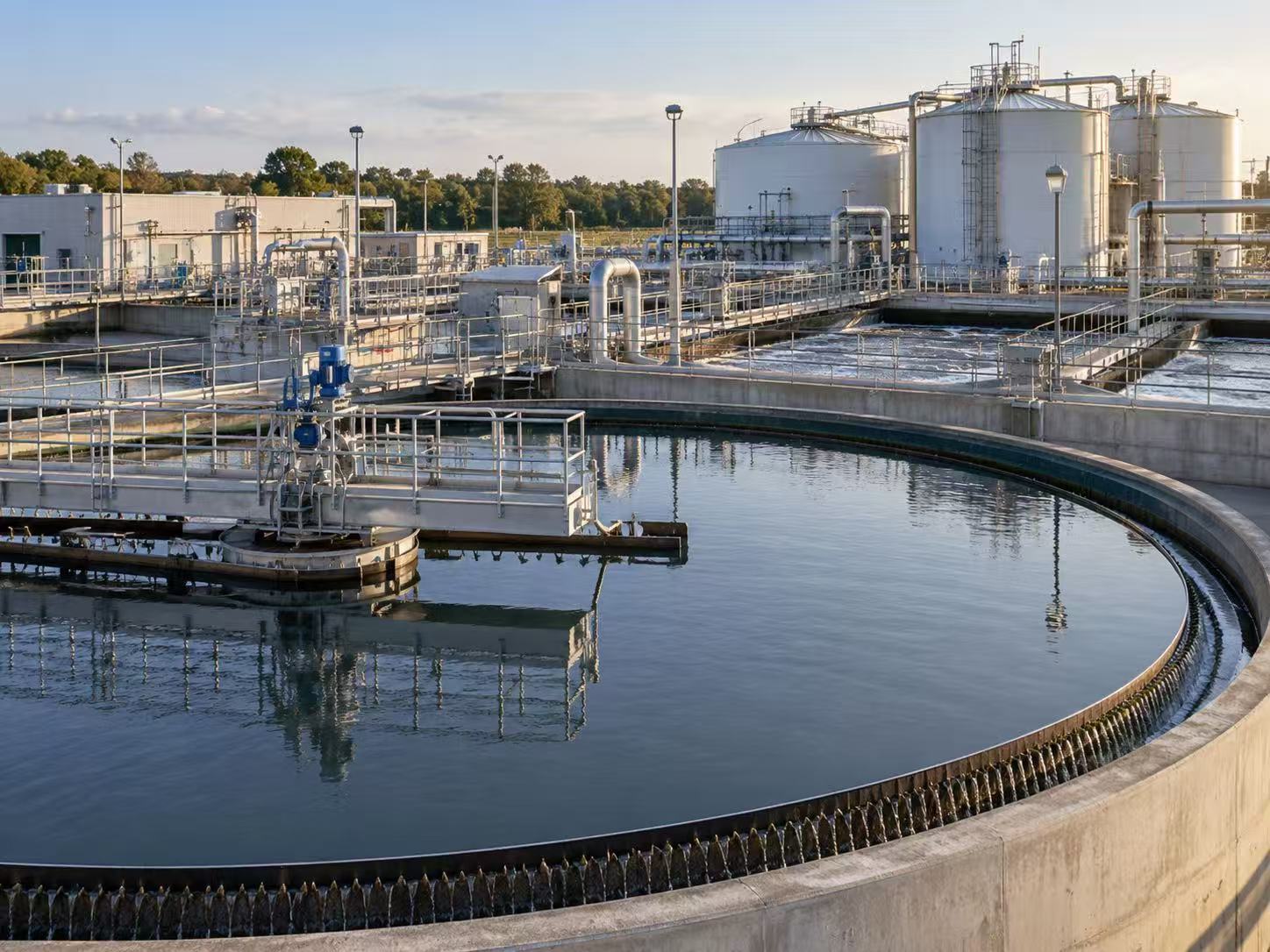

Wastewater treatment

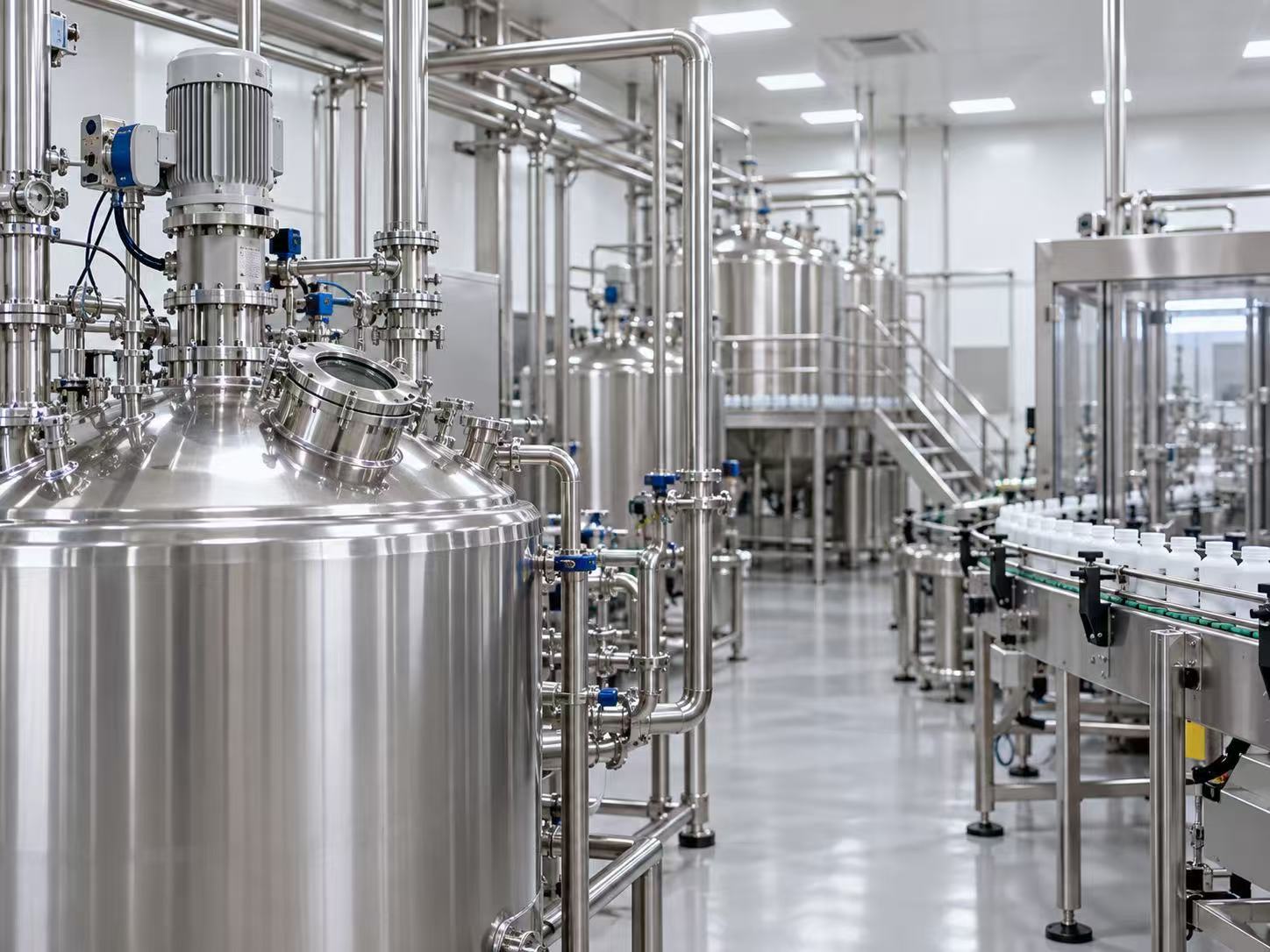

Pharmaceutical and food processes
