Why Filter Plates Warp & Deform

Symptoms · Root Causes · Proven Solutions

Plate warping is a structural deformation problem, not a routine sealing defect. Sustained overpressure, excess temperature, uneven cake formation or unsuitable recycled material can permanently reduce flatness and transfer uneven loads through the plate stack.

The Problem

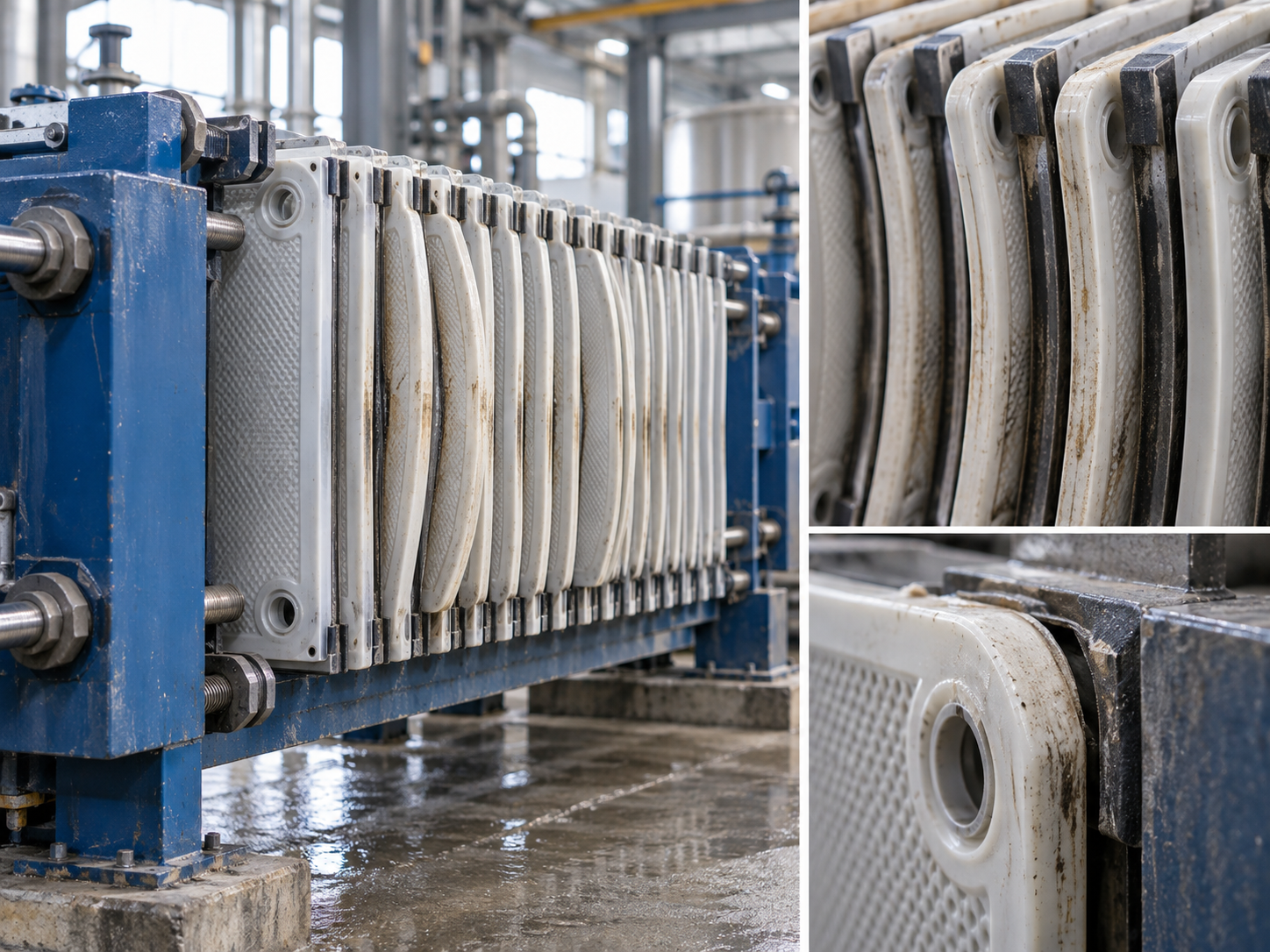

What Is Happening?

Measure flatness after depressurizing and unloading the stack. Permanent bowing, altered plate spacing and repeated leakage at different perimeter points distinguish structural creep from a dirty groove, isolated gasket defect or through-body fracture.

Common Symptoms

Plates arch and cannot fit closely when stacked
Leakage returns after cloth and gasket replacement
Plates become difficult to separate during discharge
Adjacent components show uneven wear

Root Causes

4 Root Causes

Long-Term Overpressure

Plastic creep develops under sustained overload.

Hot Slurry

Local overheating softens the plate material.

Uneven Cake Formation

Persistent stress imbalance bends the plate.

Poor Raw Material

Recycled plastic lacks the required rigidity and stability.

Proven Solutions

3 Recommended Actions

Solution 01

Operate Within Rating

Avoid prolonged overpressure holding.

Solution 02

Use Virgin Reinforced PP

Select high-strength anti-warping plate formulations.

Solution 03

Replace Warped Plates

Remove deformed components before uneven load spreads through the stack. Verify rail support, closing alignment, pressure-hold duration and slurry temperature, then use a plate formulation whose rigidity and thermal limit match the recorded operating cycle.
