Filter Plate

Polypropylene (PP) Filter Plate

Name: Polypropylene (PP) Filter Plate
Brand: Shine Technology
Availability: PreOrder

One-piece modified PP plate combining corrosion resistance, toughness and pressure resistance.

Filter Plate Series

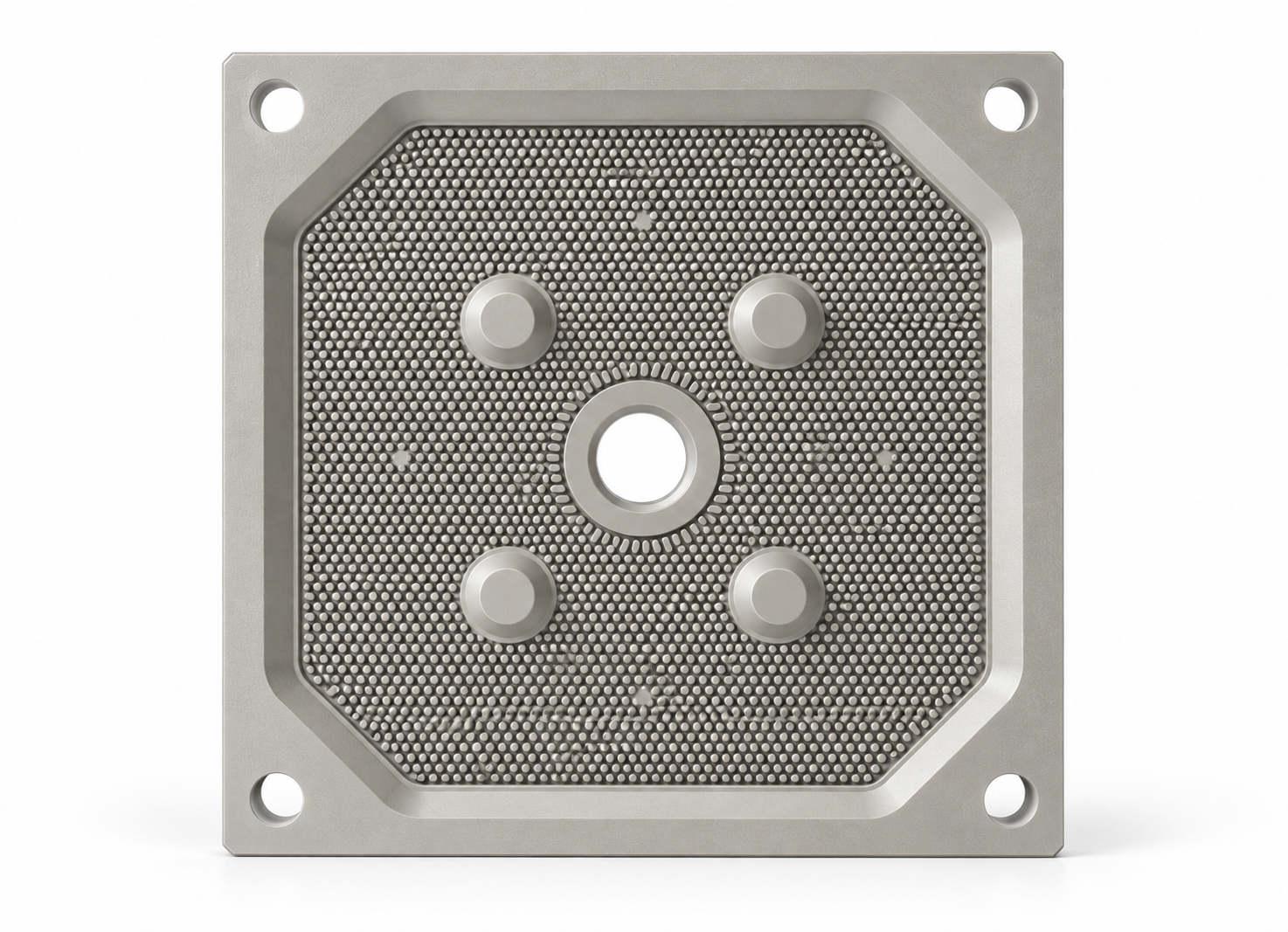

Polypropylene (PP) Filter Plate

The polypropylene (PP) filter plate is integrally injection-molded from new modified PP raw materials with a dense and stable structure without splicing gaps. It combines excellent toughness, pressure resistance and corrosion resistance, suitable for most normal-temperature and conventional acid-base industrial working conditions.

Raw materialReinforced modified polypropylene

Continuous working temperature≤85℃

Transient temperature≤90℃

pH resistance1～13

Standard press resistance0.8MPa / 1.0MPa / 1.6MPa

Common typesChamber, recessed and membrane squeeze plate

Get a Free Quote Request Sample Technical Data

Product Description

Key Features

Excellent acid and alkali corrosion resistance

Light weight for easier installation and

Light weight for easier installation and maintenance

Good toughness and anti-cracking performance

Low water absorption with no rust

Low water absorption with no rust or oxidation

Smooth easy-clean surface compatible with PP

Smooth easy-clean surface compatible with PP filter cloth

Technical Specifications

Parameter	Polypropylene (PP) Filter Plate	Custom Range
Raw material	Reinforced modified polypropylene	Customizable on request
Continuous working temperature	≤85℃	Customizable on request
Transient temperature	≤90℃	Customizable on request
pH resistance	1～13	Customizable on request
Standard press resistance	0.8MPa / 1.0MPa / 1.6MPa	Customizable on request
Common types	Chamber, recessed and membrane squeeze plate	Customizable on request
Surface treatment	Integral molding, smooth non-porous surface	Customizable on request
Size	500/630/800/1000/1250/1500mm and custom	Customizable on request
