Expandable surface enables air or water
Expandable surface enables air or water squeezing for lower cake moisture
Filter Plate
Rubber Filter Plate
Flexible vulcanized membrane plate for tight sealing, secondary squeezing and lower cake moisture.
Filter Plate Series

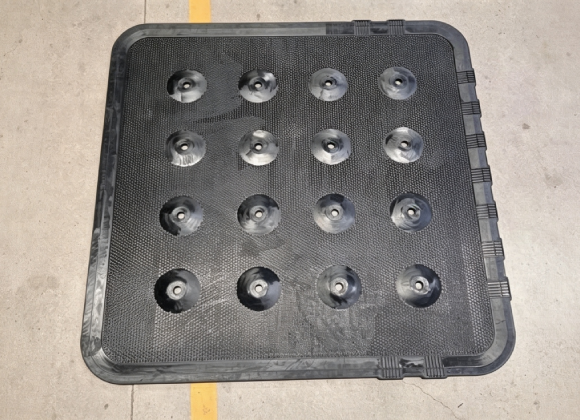

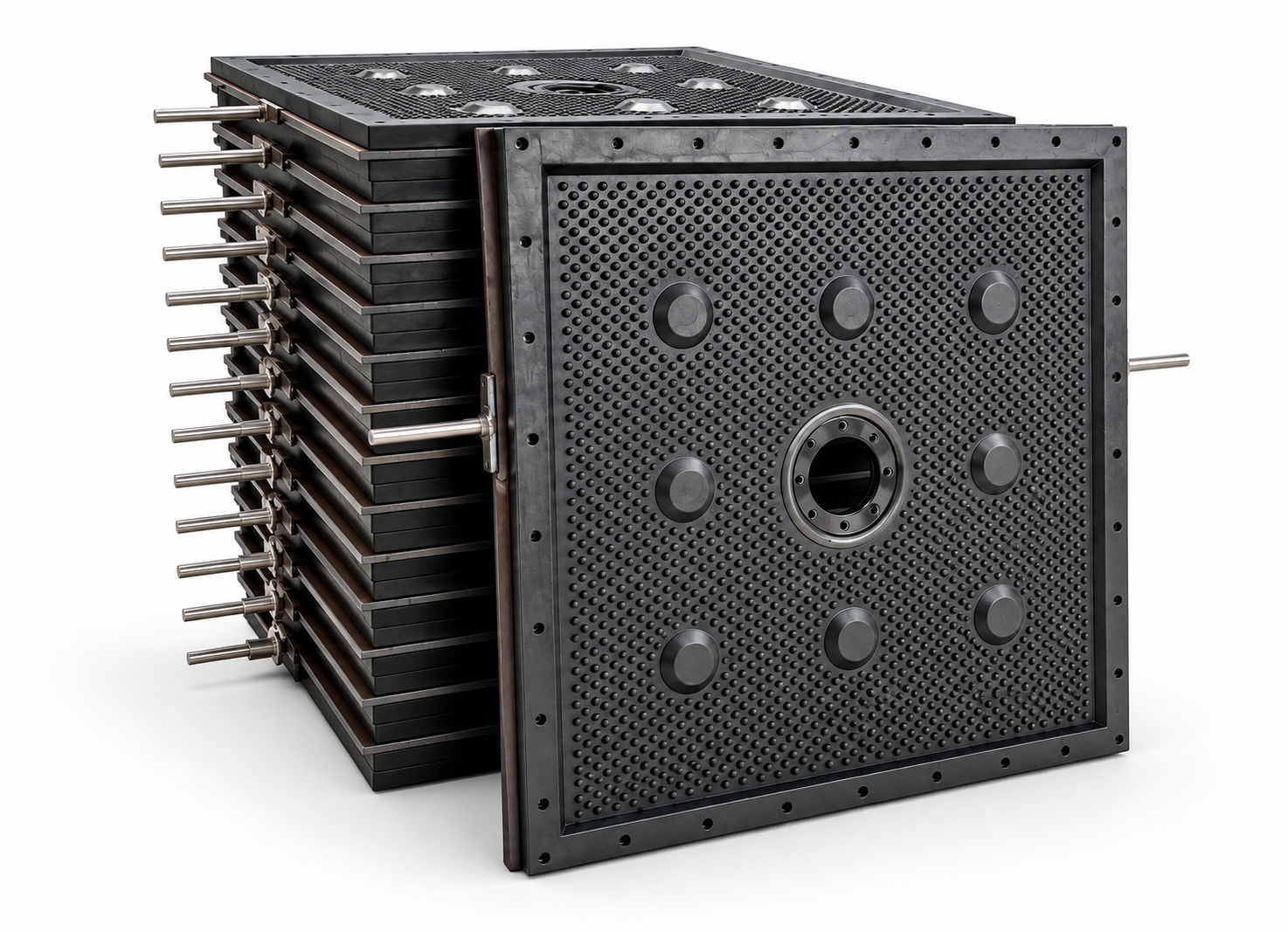

Rubber Filter Plate
The rubber filter plate is made of high-quality natural rubber and nitrile rubber through composite vulcanization technology, with excellent flexibility, elasticity and sealing performance. It adaptively fits during high-pressure squeezing for tight sealing and is designed for membrane filter presses to realize secondary squeezing and reduce filter cake moisture.
Main materialReinforced natural rubber / EPDM rubber
Continuous working temperature≤75℃
Transient temperature≤80℃
pH resistance2～12
Standard squeezing pressure0.8MPa～1.5MPa
Structure typeIntegral rubber membrane filter plate
Product Description
The rubber filter plate is made of high-quality natural rubber and nitrile rubber through composite vulcanization technology, with excellent flexibility, elasticity and sealing performance. It adaptively fits during high-pressure squeezing for tight sealing and is designed for membrane filter presses to realize secondary squeezing and reduce filter cake moisture.
Key Features
Good elasticity and compression recovery
Good elasticity and compression recovery
Wear resistance for weak-acid and weak-alkali
Wear resistance for weak-acid and weak-alkali slurry
Tight sealing reduces slurry leakage
Tight sealing reduces slurry leakage
Flexible surface is easy to clean
Flexible surface is easy to clean
Technical Specifications
| Parameter | Rubber Filter Plate | Custom Range |
|---|---|---|
| Main material | Reinforced natural rubber / EPDM rubber | Customizable on request |
| Continuous working temperature | ≤75℃ | Customizable on request |
| Transient temperature | ≤80℃ | Customizable on request |
| pH resistance | 2～12 | Customizable on request |
| Standard squeezing pressure | 0.8MPa～1.5MPa | Customizable on request |
| Structure type | Integral rubber membrane filter plate | Customizable on request |
| Molding process | High-temperature one-time vulcanization | Customizable on request |
| Common sizes | 800/1000/1250/1500mm and custom | Customizable on request |
Applications

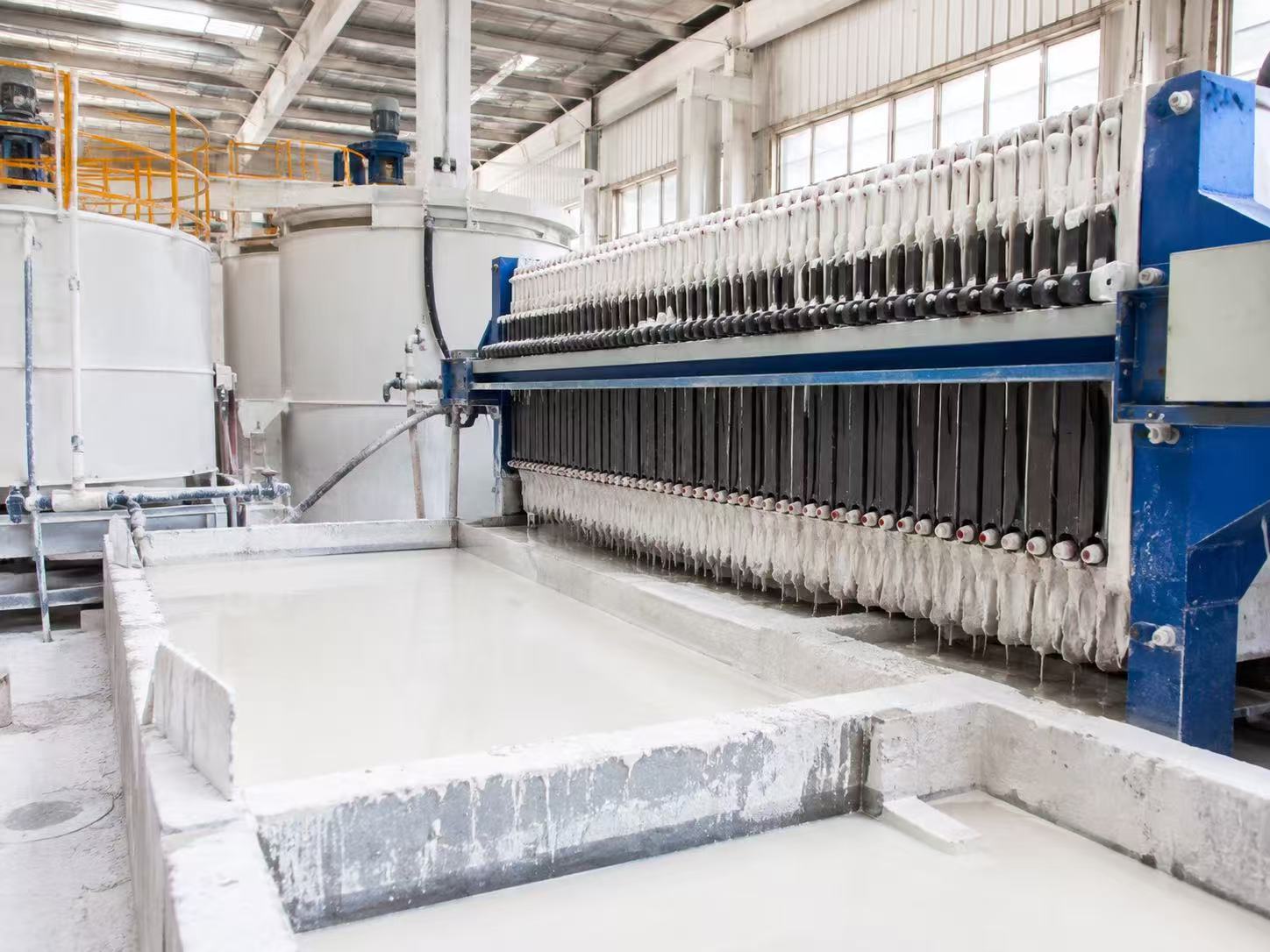

Municipal sewage sludge dewatering

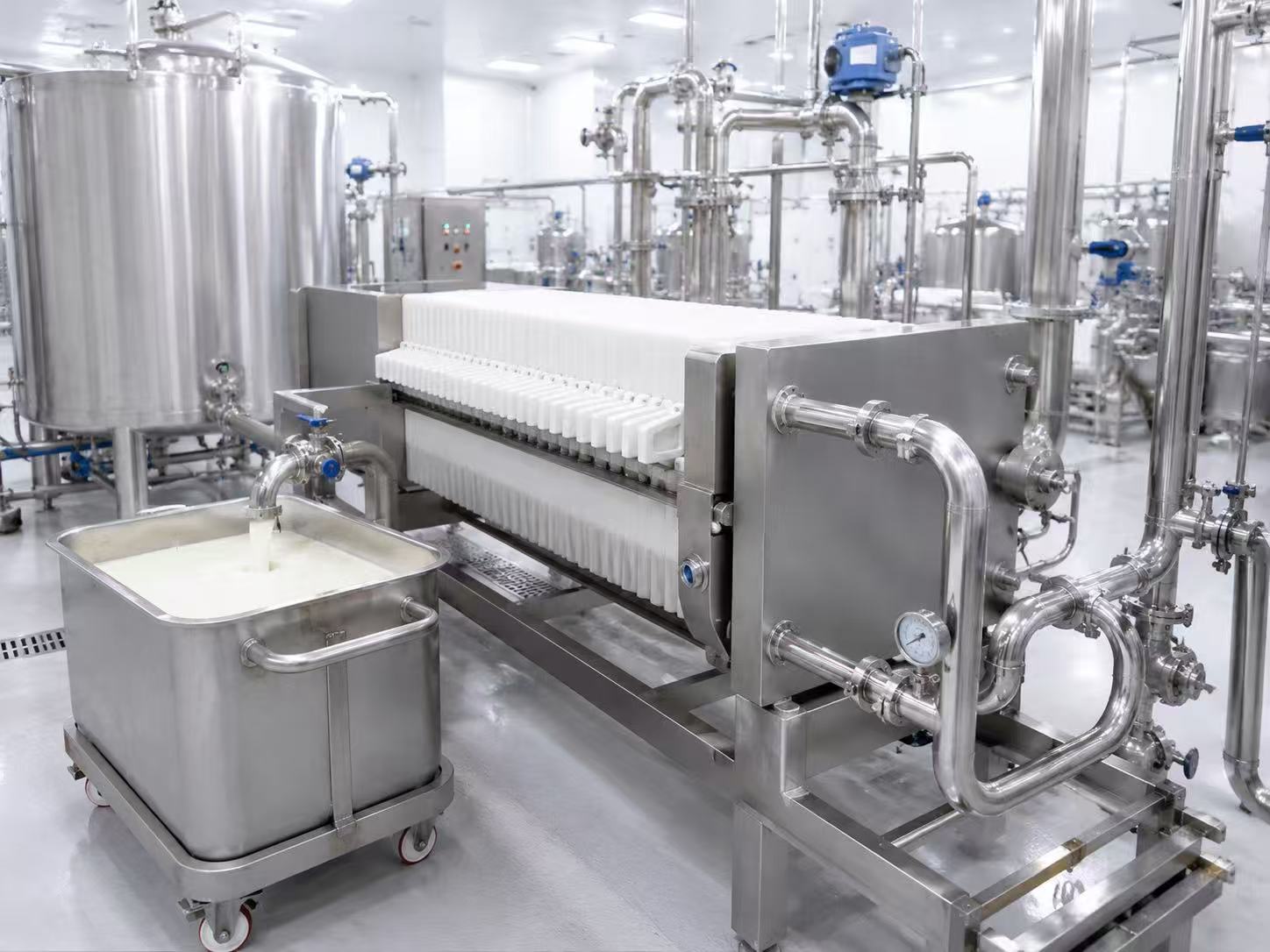

Mineral, pigment and calcium-carbonate slurry

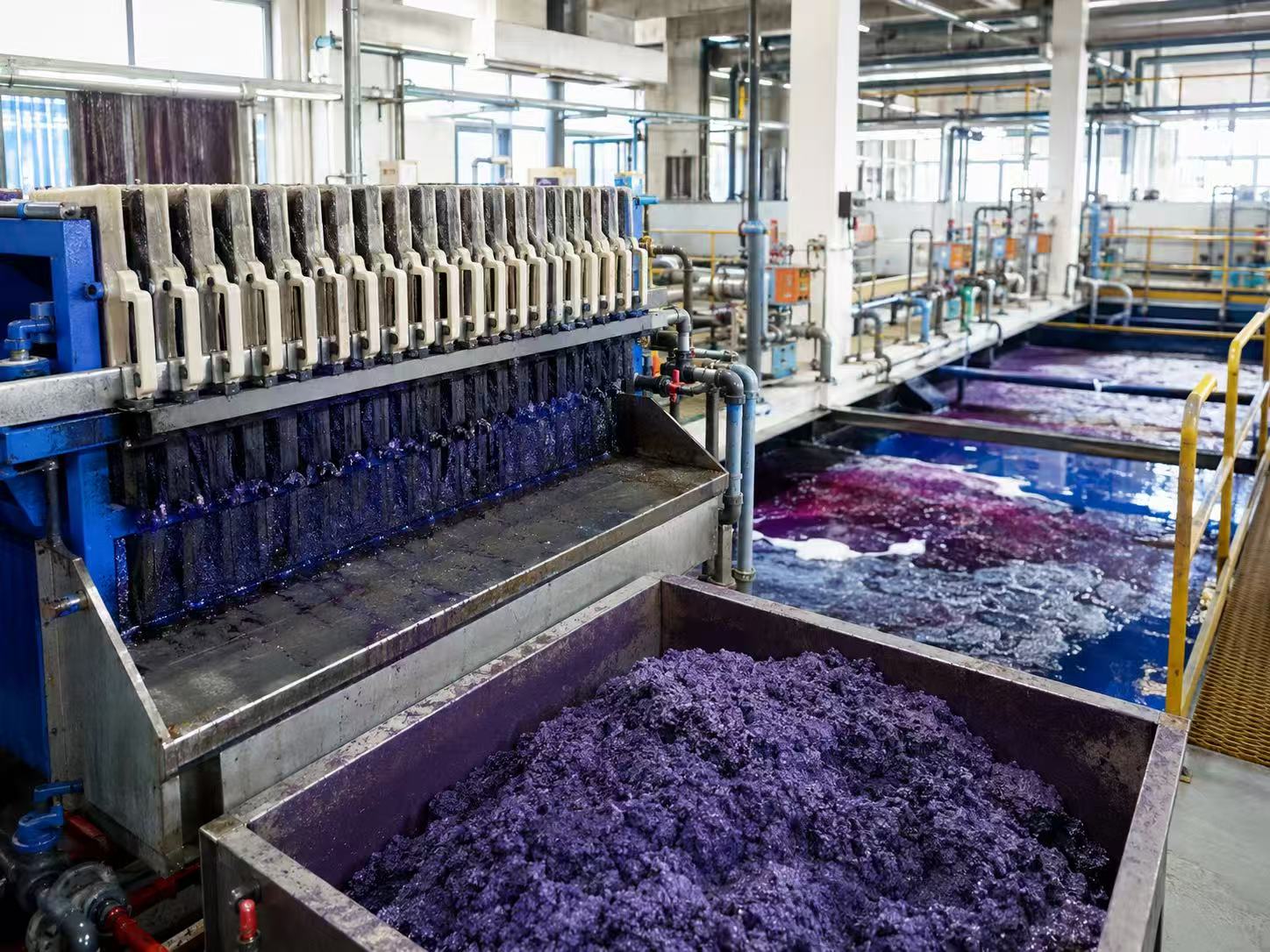

Printing, dyeing and electroplating sludge

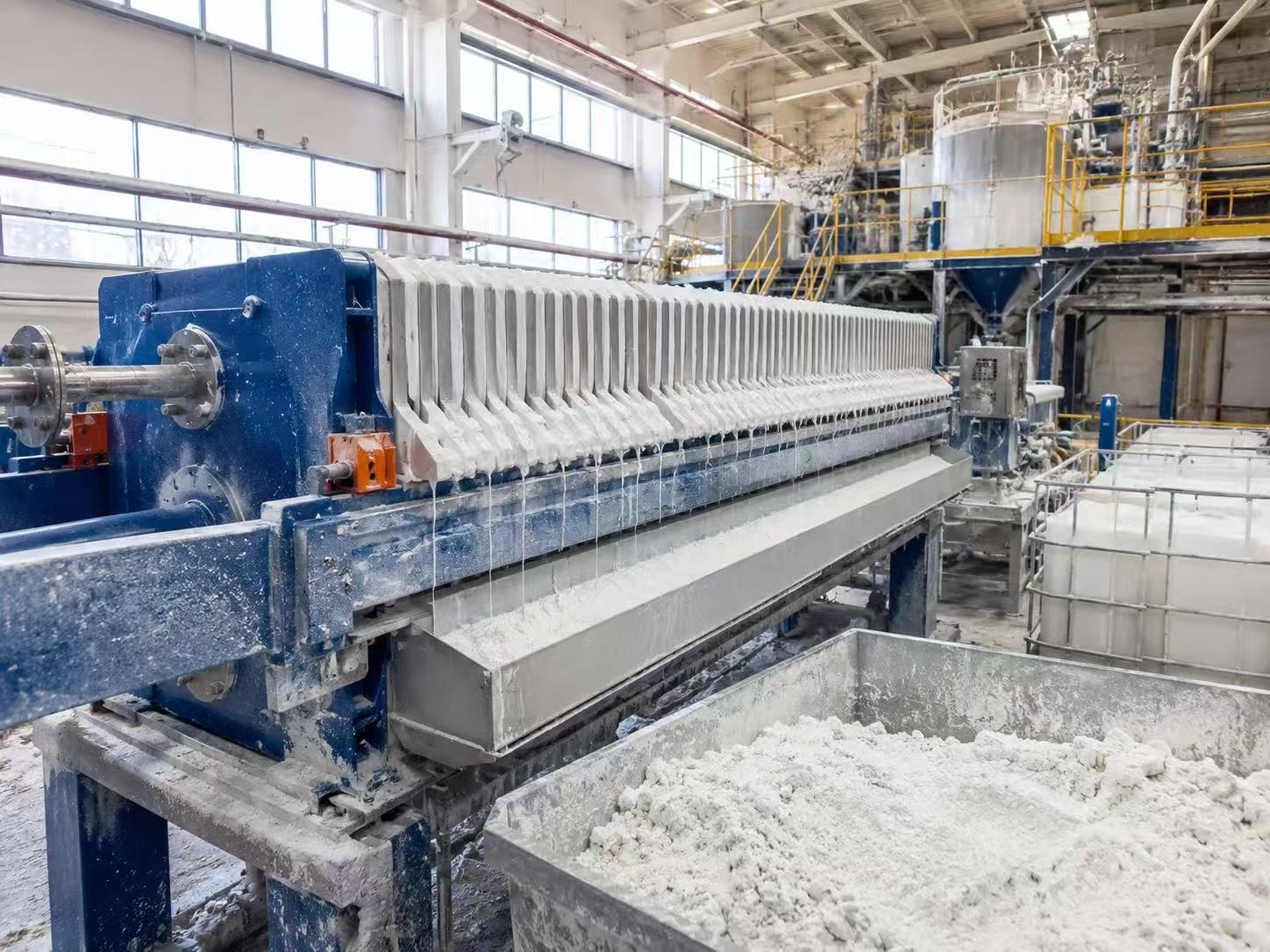

Food and pharmaceutical low-temperature slurry

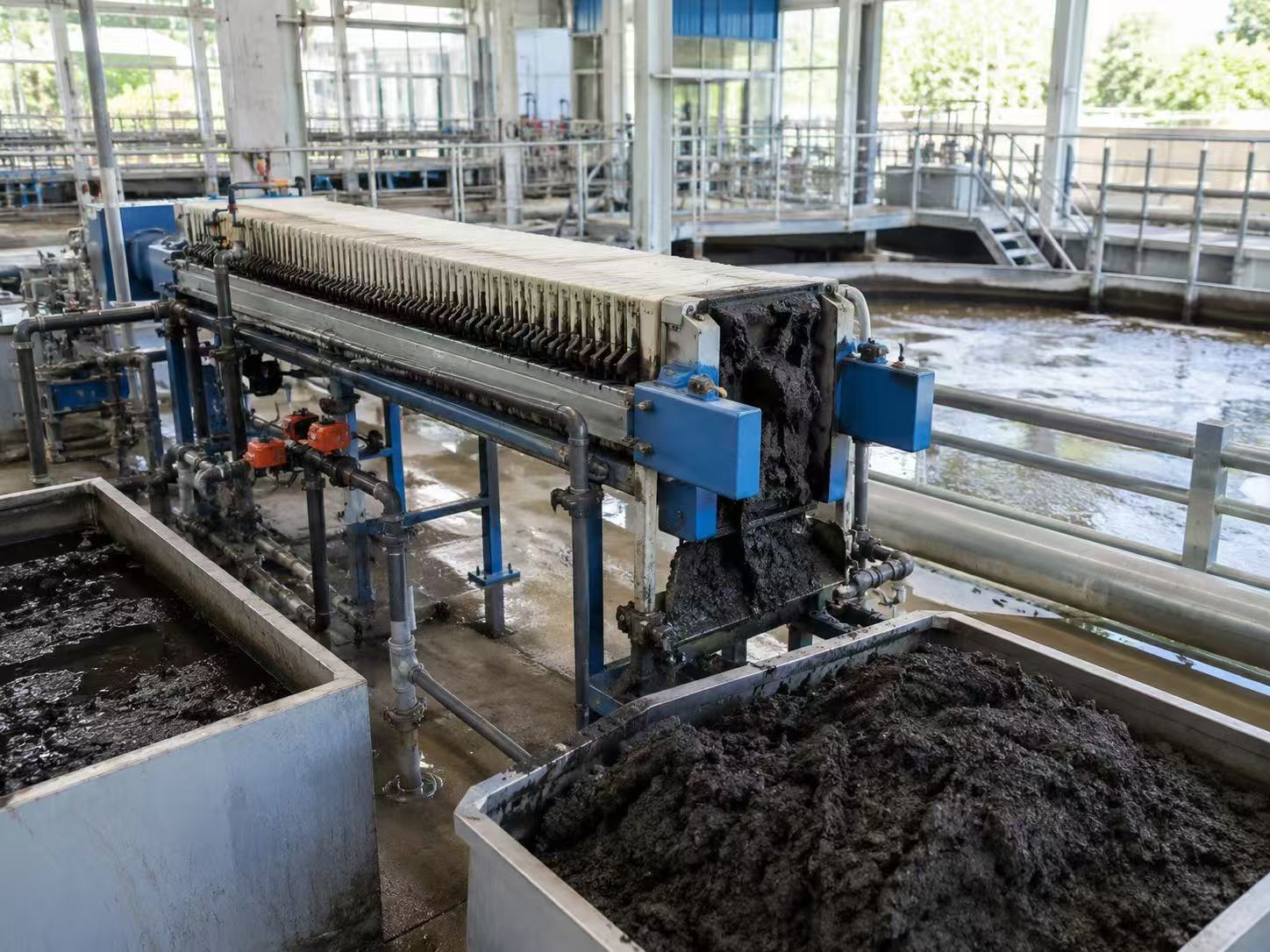

Construction, kaolin and ceramic slurry
