Filter Cloth

Monofilament Filter Cloth

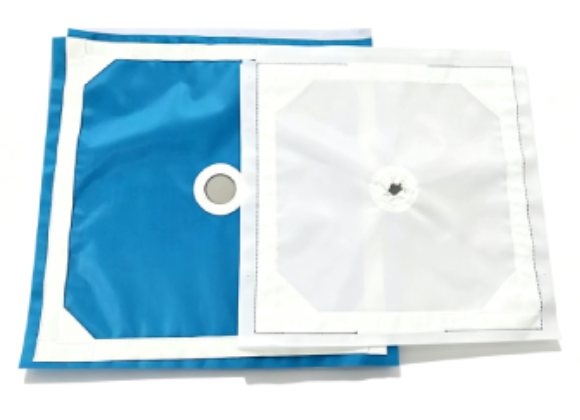

Name: Monofilament Filter Cloth
Brand: Shine Technology
Availability: PreOrder

Uniform two-dimensional mesh with high flow, easy cake release and reusable construction.

Filter Cloth Series

Monofilament Filter Cloth

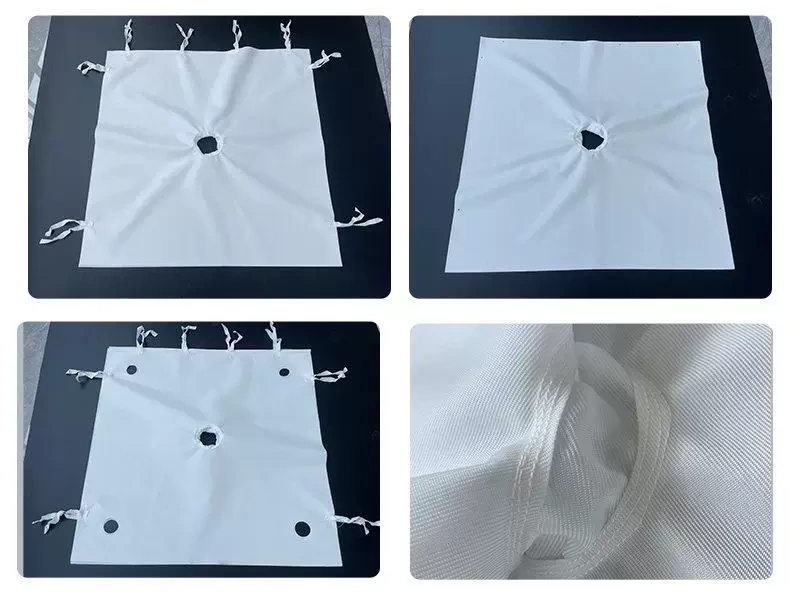

Monofilament filter cloth is woven from smooth, continuous single-filament yarn to create an open two-dimensional mesh. Its defining advantages are unobstructed pores, high flow and clean cake release rather than the depth capture provided by non-woven felt or the fiber surface of multifilament cloth.

MaterialWoven PET / PP monofilament

Continuous working temperaturePET ≤120℃ / PP ≤85℃

Transient temperaturePET 130℃ / PP 90℃

pH resistancePET 4～9 / PP 1～13

Filtration precisionPET 10～100μm / PP 10～120μm

Weave typePlain / twill weave, heat-set finished

Get a Free Quote Request Sample Technical Data

Product Description

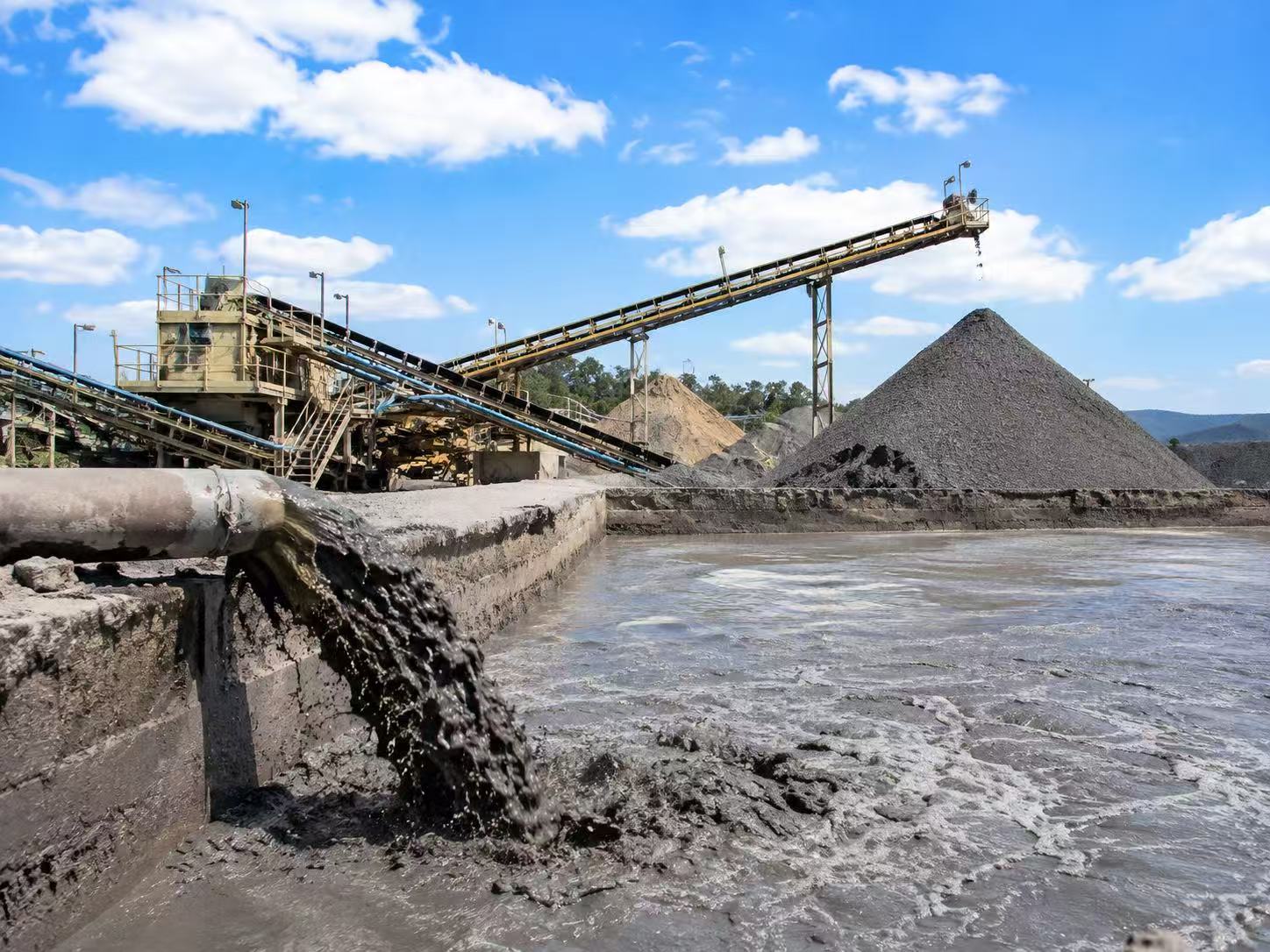

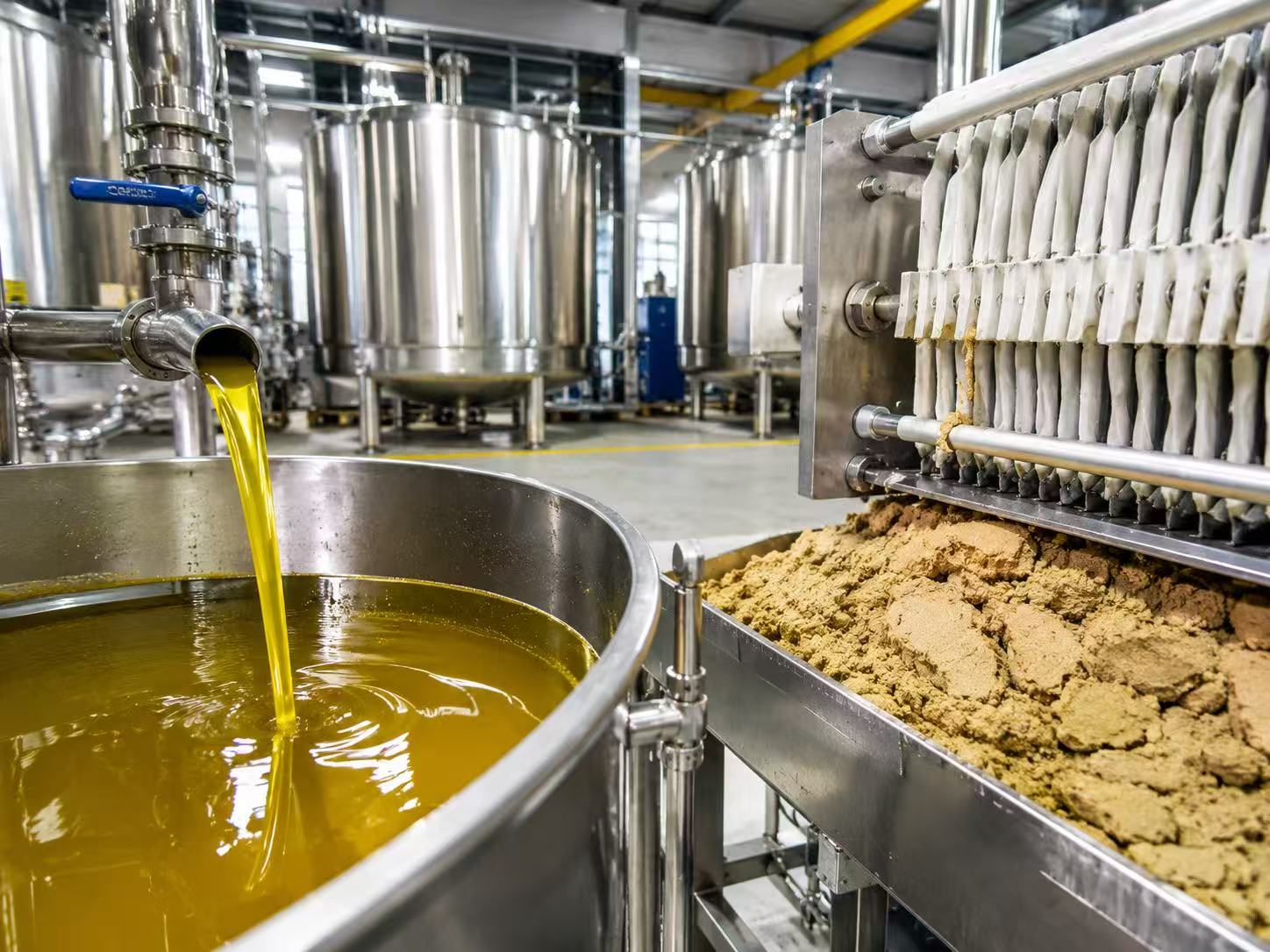

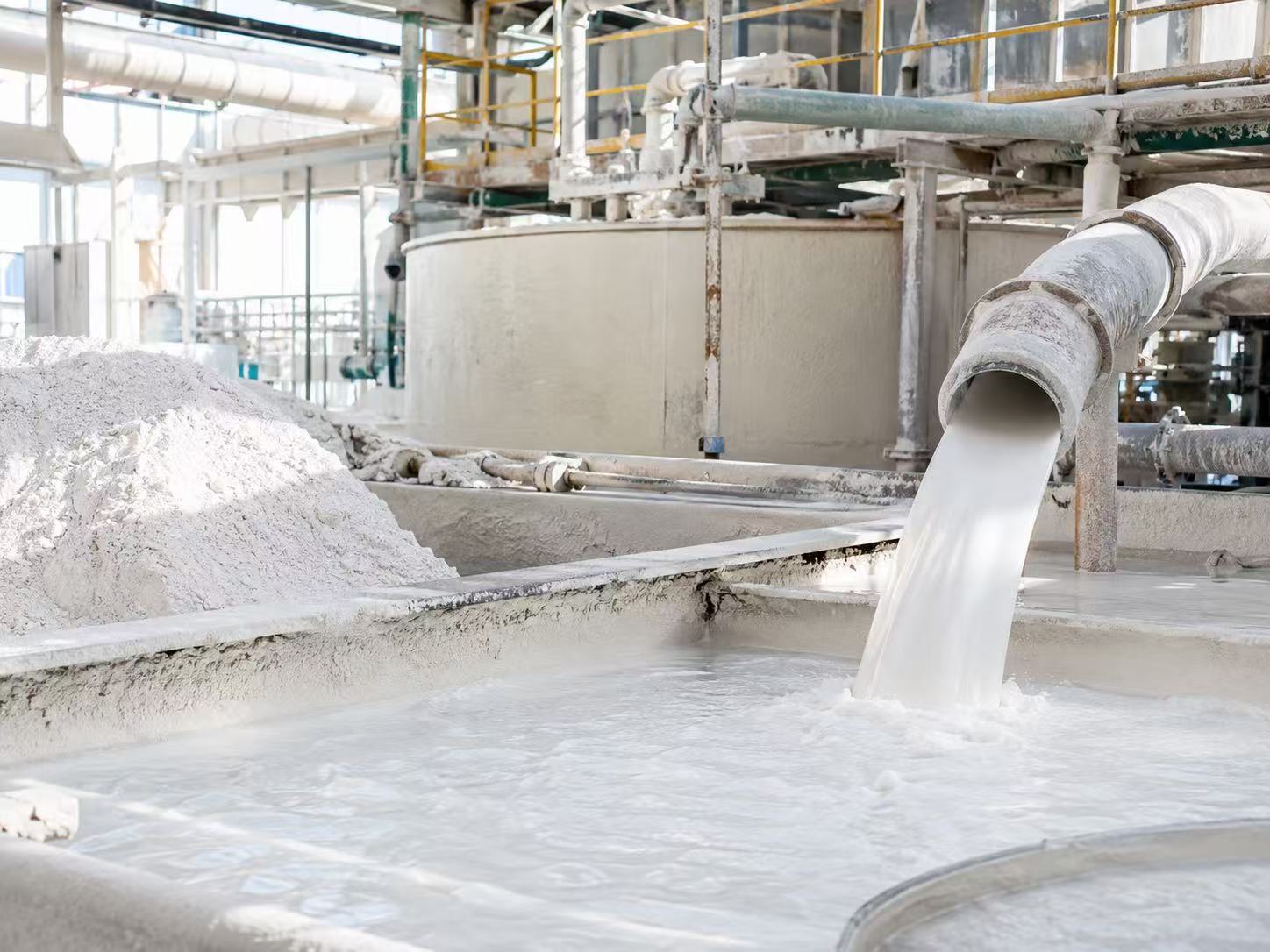

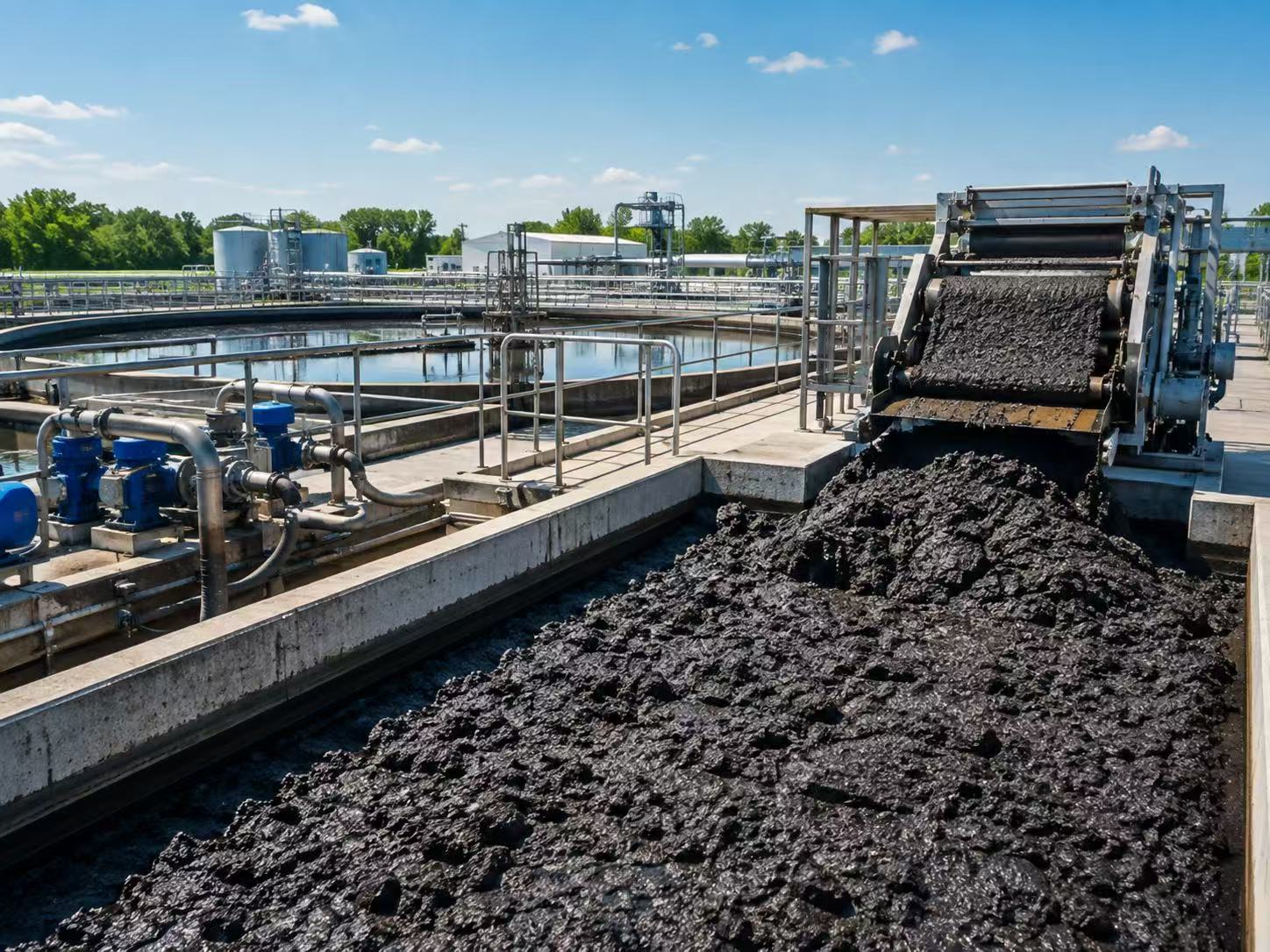

The smooth yarn surface makes it difficult for particles to embed in the fabric, so the cloth can be washed and reused after cake discharge. This makes monofilament media suitable for granular or crystalline materials, mine and sand slurry, palm-oil residue, kaolin and wastewater sludge when cycle time and release behavior are important. PET and PP versions provide different operating envelopes: PET is listed to 120°C and pH 4–9, while PP is listed to 85°C and pH 1–13. Select material, 10–120 μm aperture range and plain or twill weave according to slurry chemistry, particle grading and the required balance between throughput and clarity.

Key Features

Smooth filament surface enables automatic and

Smooth filament surface enables automatic and thorough cake discharge

Unobstructed pores resist clogging for high

Unobstructed pores resist clogging for high flow and shorter cycles

Hard for particles to penetrate

Hard for particles to penetrate; reusable after washing

Stable woven structure resists pressure deformation

Stable woven structure resists pressure deformation and fiber shedding

Uniform controllable aperture for granular and

Uniform controllable aperture for granular and crystalline materials

Technical Specifications

Parameter	Monofilament Filter Cloth	Custom Range
Material	Woven PET / PP monofilament	Customizable on request
Continuous working temperature	PET ≤120℃ / PP ≤85℃	Customizable on request
Transient temperature	PET 130℃ / PP 90℃	Customizable on request
pH resistance	PET 4～9 / PP 1～13	Customizable on request
Filtration precision	PET 10～100μm / PP 10～120μm	Customizable on request
Weave type	Plain / twill weave, heat-set finished	Customizable on request
