Superior abrasion resistance compared with polyester
Superior abrasion resistance compared with polyester and polypropylene filter cloth.
Filter Cloth
Nylon PA Filter Cloth
High elasticity and superior abrasion resistance for slurry containing hard particles.
Filter Cloth Series

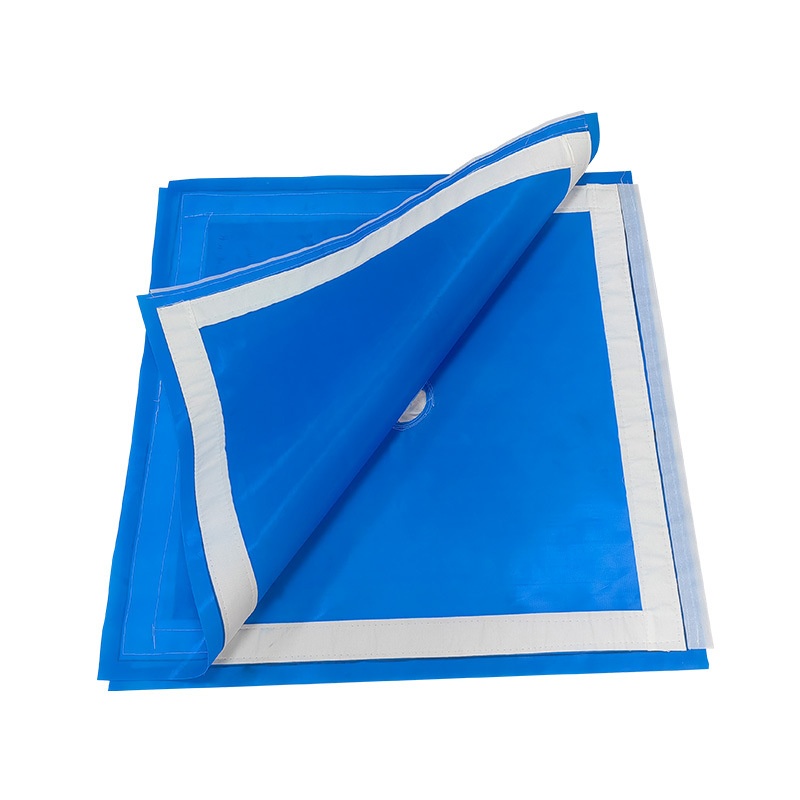

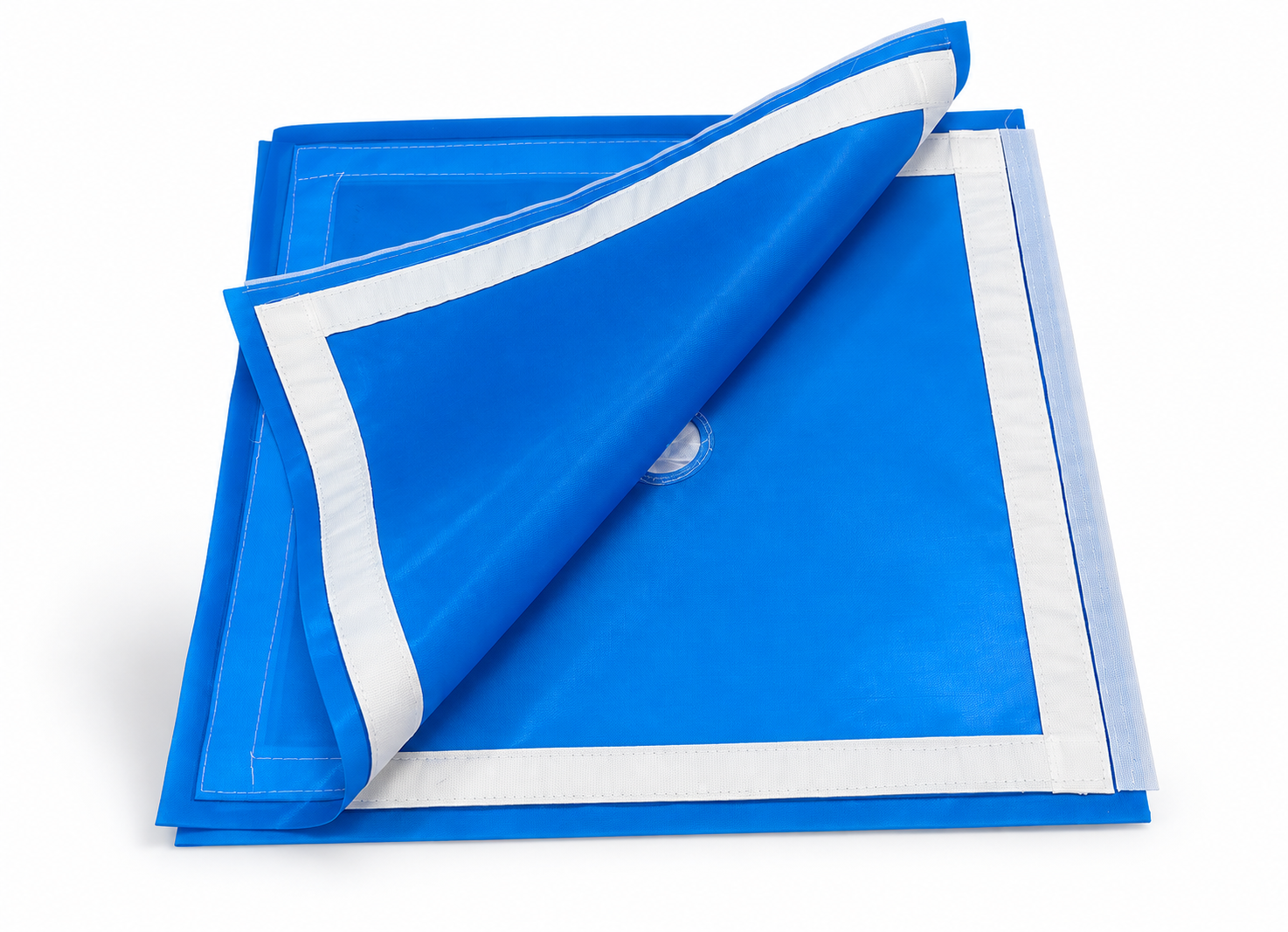

Nylon PA Filter Cloth
Nylon (Polyamide PA) filter cloth is woven multifilament filter medium made of polyamide fiber with heat-set finishing. Different from PET, PP, monofilament cloth and needled nonwoven felt, nylon features outstanding elasticity and abrasion resistance, specially suitable for slurry containing abrasive solid particles. Not recommended for strong acid conditions.
Continuous working temperature≤100℃
Transient temperature110℃
pH resistance5～11 (weak alkali resistant; poor resistance to concentrated strong acid)
Filtration precision8～50 μm
Weave typePlain / twill / satin weave, heat-set finished
Product Description
Nylon (Polyamide PA) filter cloth is woven multifilament filter medium made of polyamide fiber with heat-set finishing. Different from PET, PP, monofilament cloth and needled nonwoven felt, nylon features outstanding elasticity and abrasion resistance, specially suitable for slurry containing abrasive solid particles. Not recommended for strong acid conditions.
Key Features
Excellent fiber elasticity with good recovery
Excellent fiber elasticity with good recovery after compression.
High toughness and impact resistance under
High toughness and impact resistance under repeated high-pressure squeezing.
Stable fabric structure ensures consistent particle
Stable fabric structure ensures consistent particle retention and clear filtrate.
Moderate self-lubricating property facilitates filter cake
Moderate self-lubricating property facilitates filter cake discharge.
Technical Specifications
| Parameter | Nylon PA Filter Cloth | Custom Range |
|---|---|---|
| Continuous working temperature | ≤100℃ | Customizable on request |
| Transient temperature | 110℃ | Customizable on request |
| pH resistance | 5～11 (weak alkali resistant; poor resistance to concentrated strong acid) | Customizable on request |
| Filtration precision | 8～50 μm | Customizable on request |
| Weave type | Plain / twill / satin weave, heat-set finished | Customizable on request |
Applications

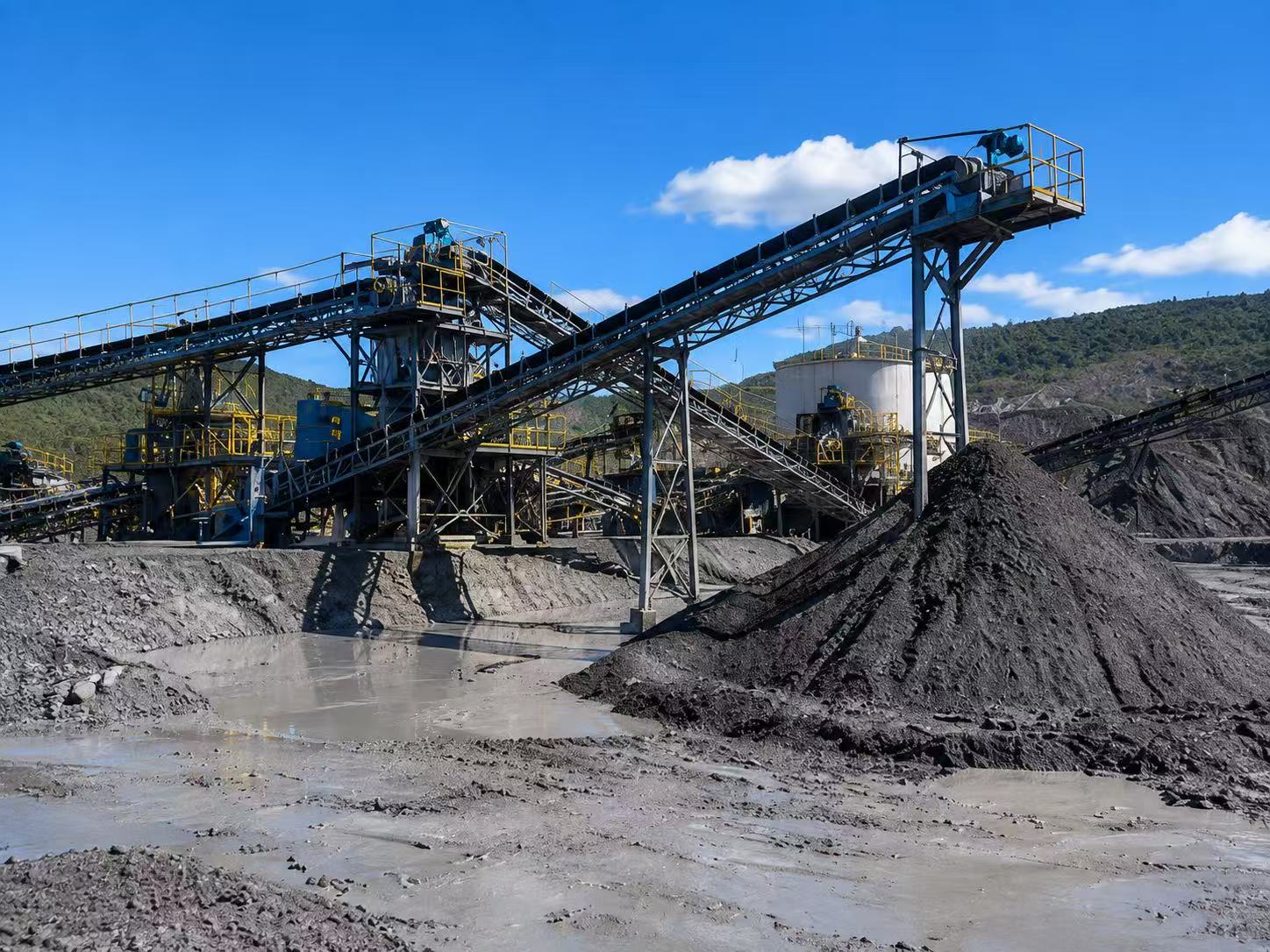

Abrasive ore slurry, quartz sand and metal mineral slurry

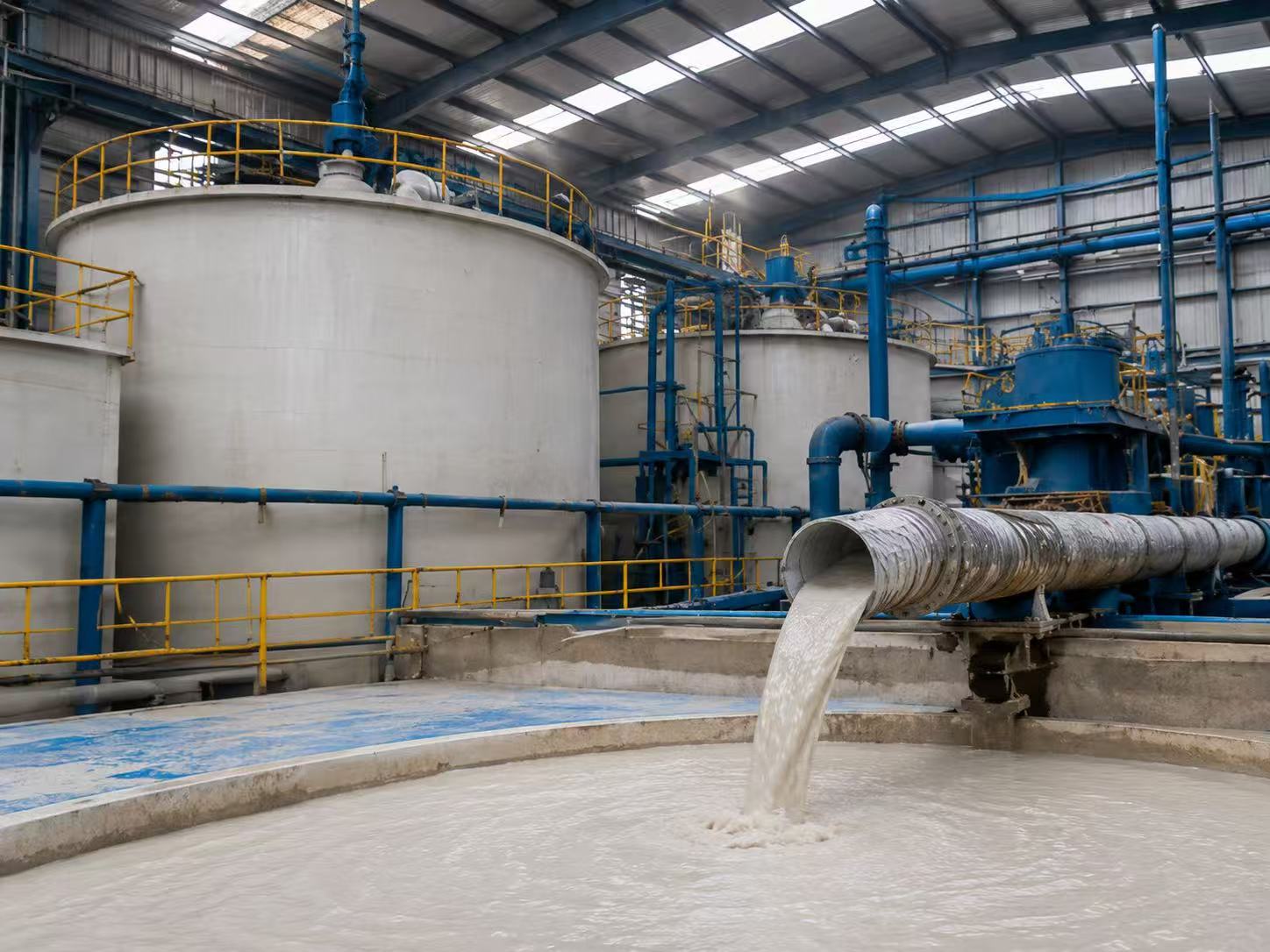

Ceramic materials, abrasives and calcium carbonate slurry

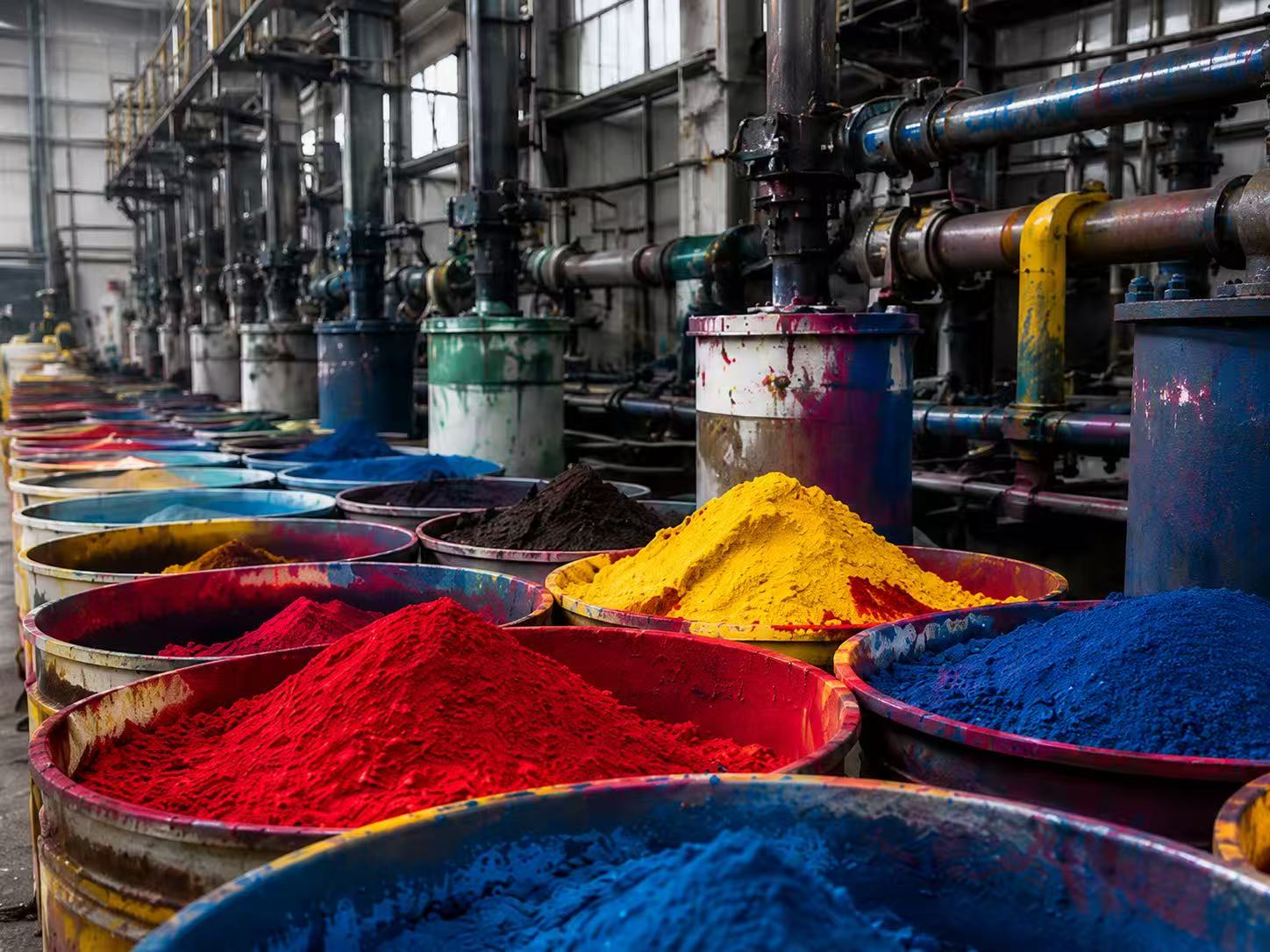

Rubber additives, pigments and coatings

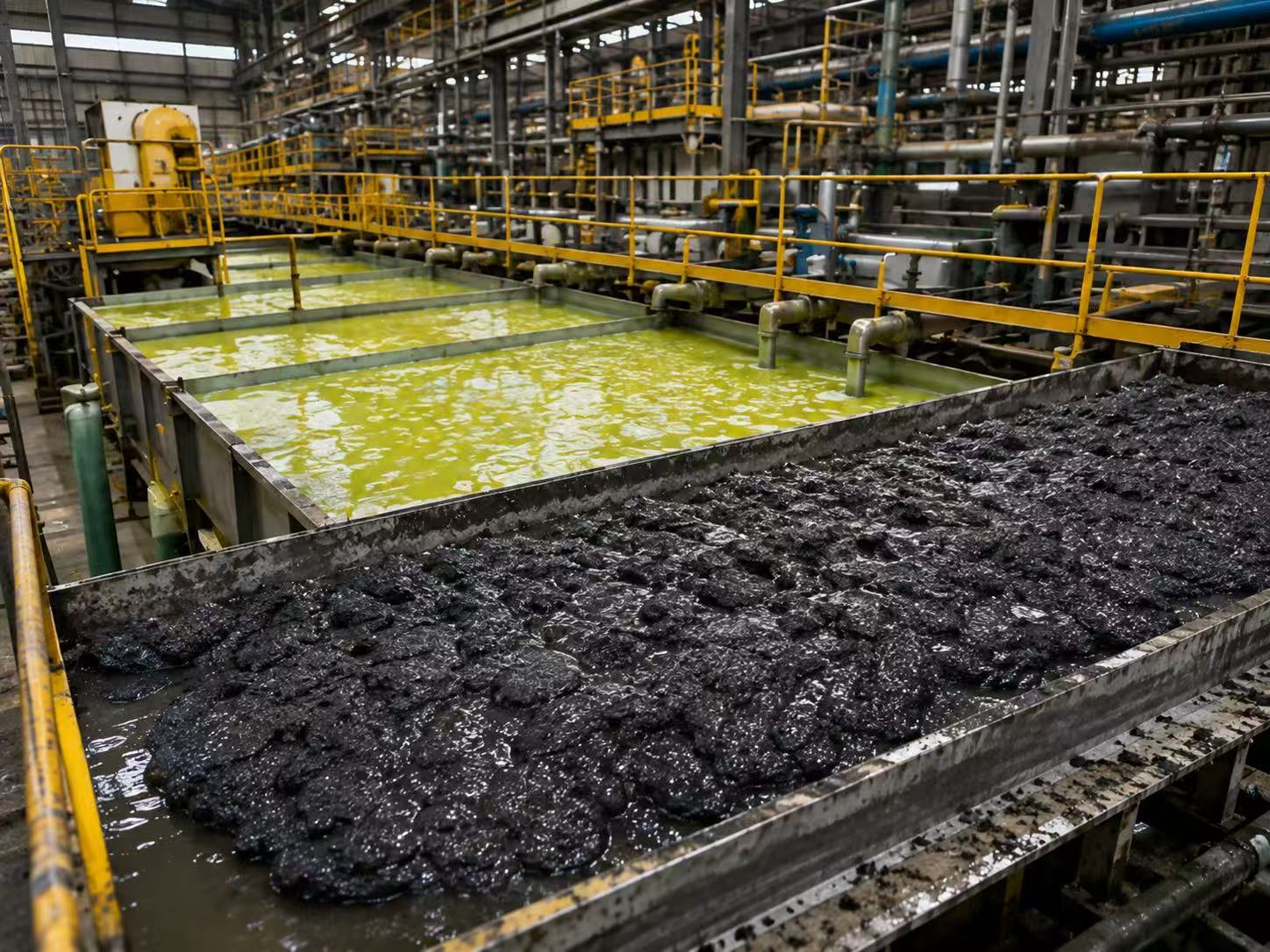

Neutral and weak alkaline non-ferrous metal slurry

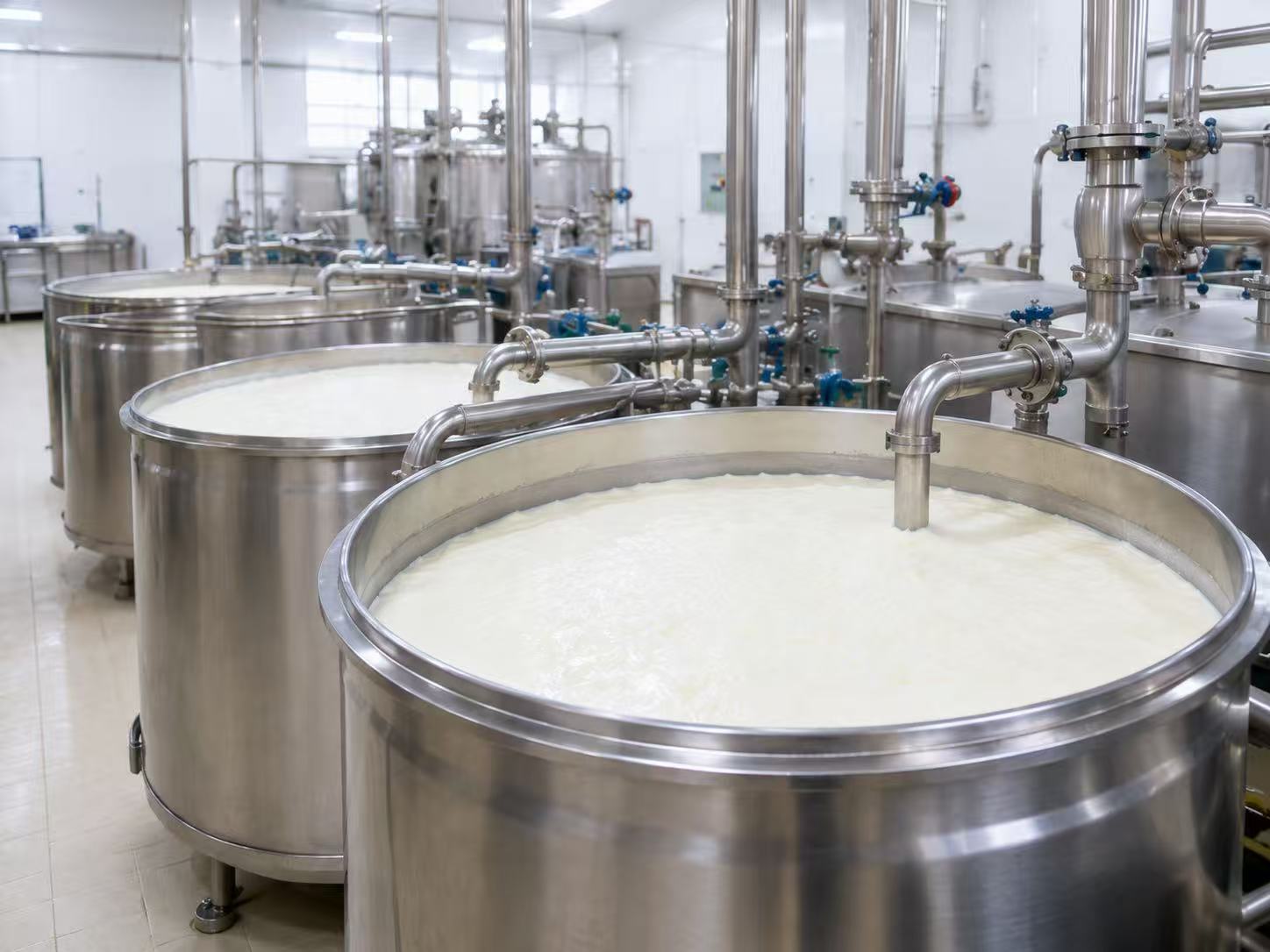

Neutral food-industry slurry
