Filter Cloth

Non-woven Filter Cloth

Name: Non-woven Filter Cloth
Brand: Shine Technology
Availability: PreOrder

Three-dimensional pore structure for fine-particle capture, clear filtrate and easy cake release.

Filter Cloth Series

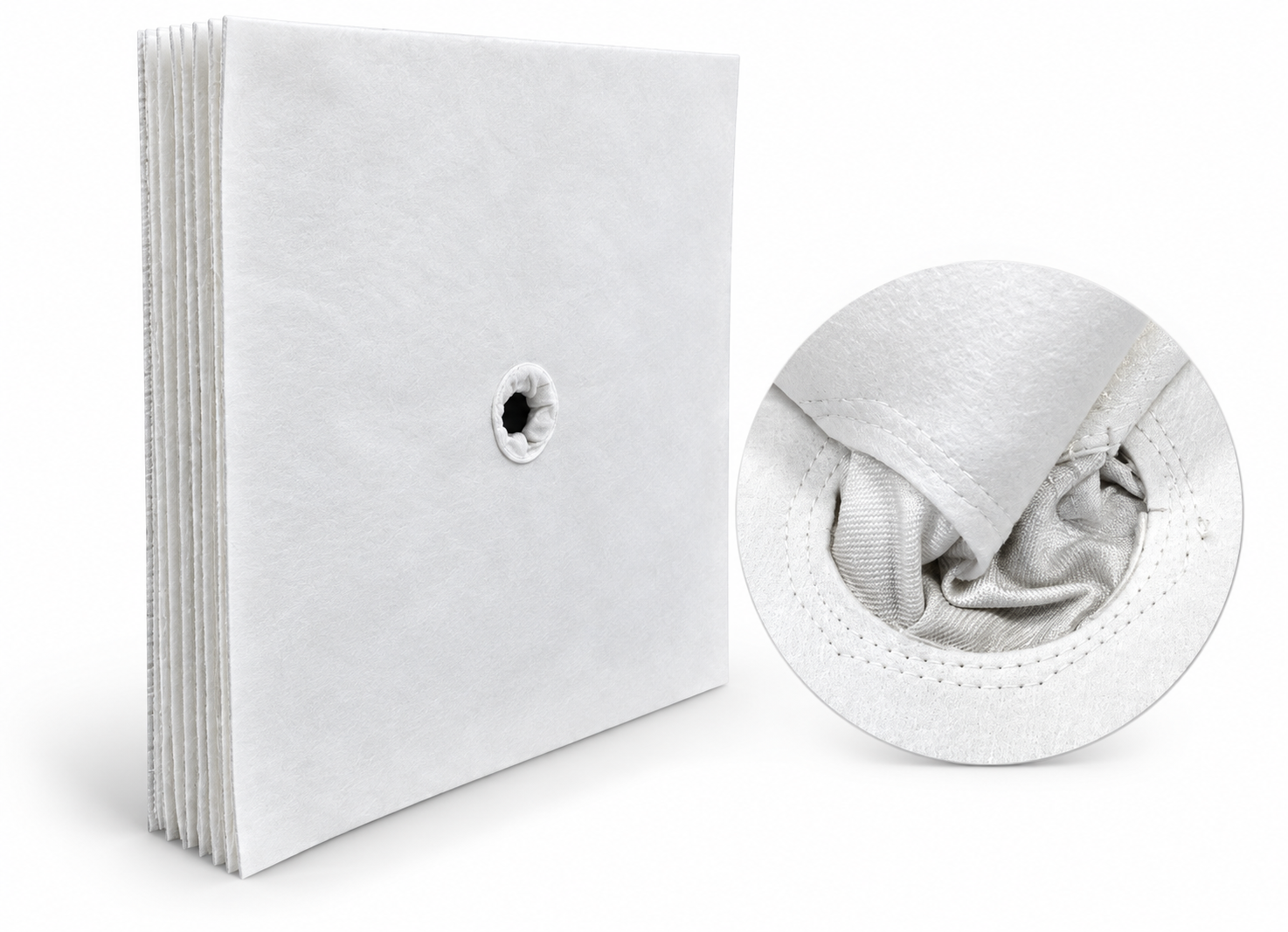

Non-woven Filter Cloth

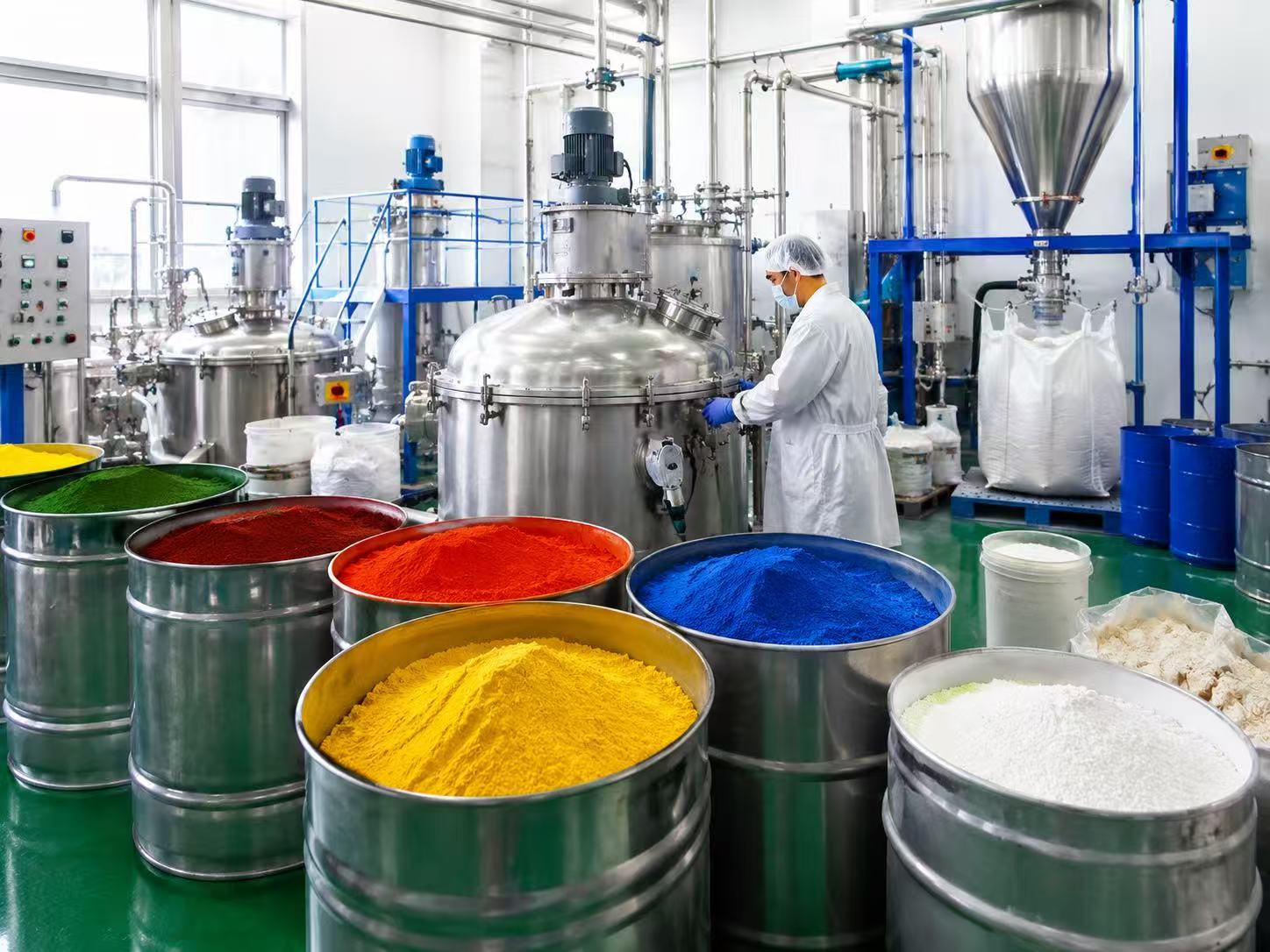

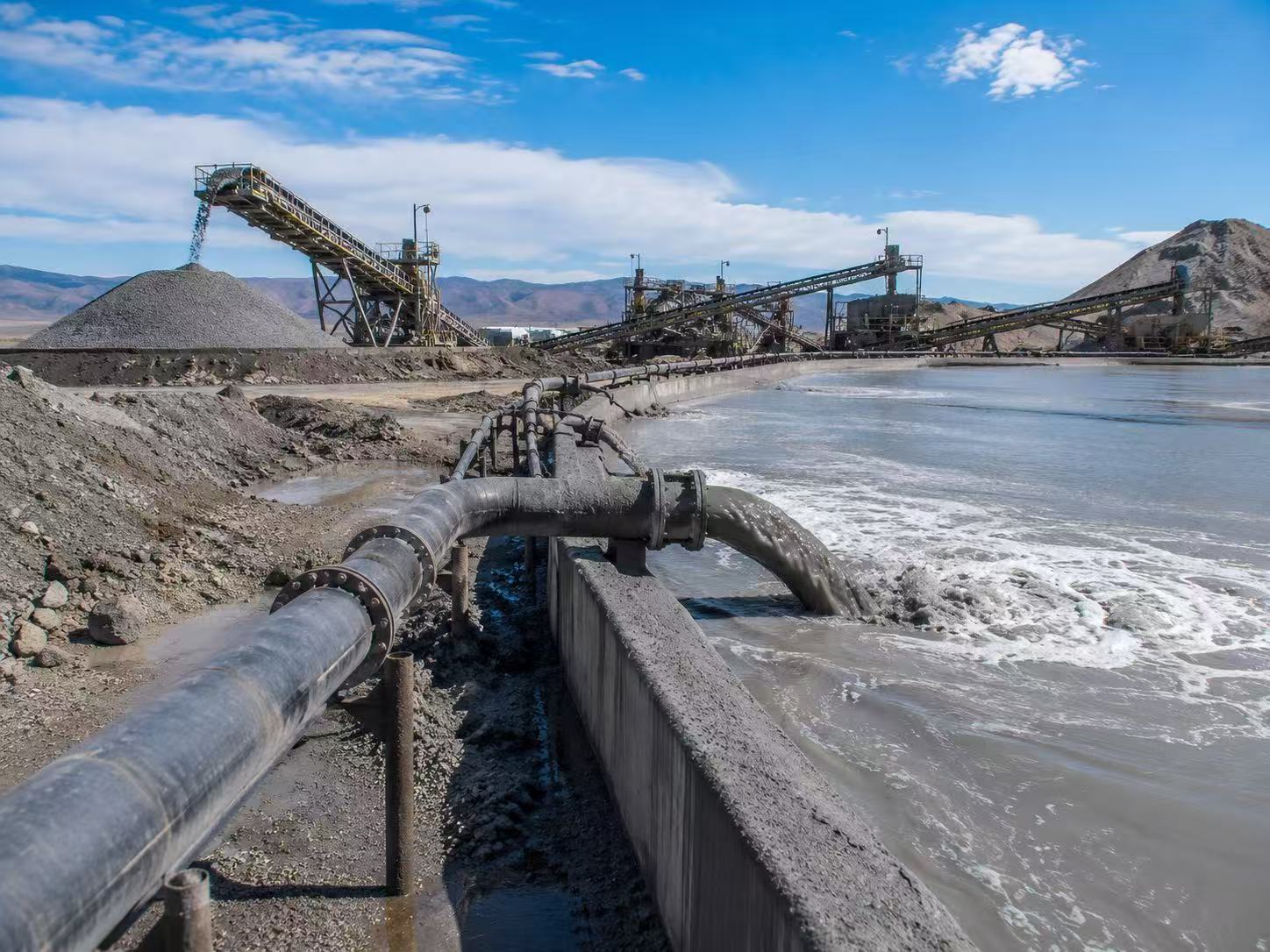

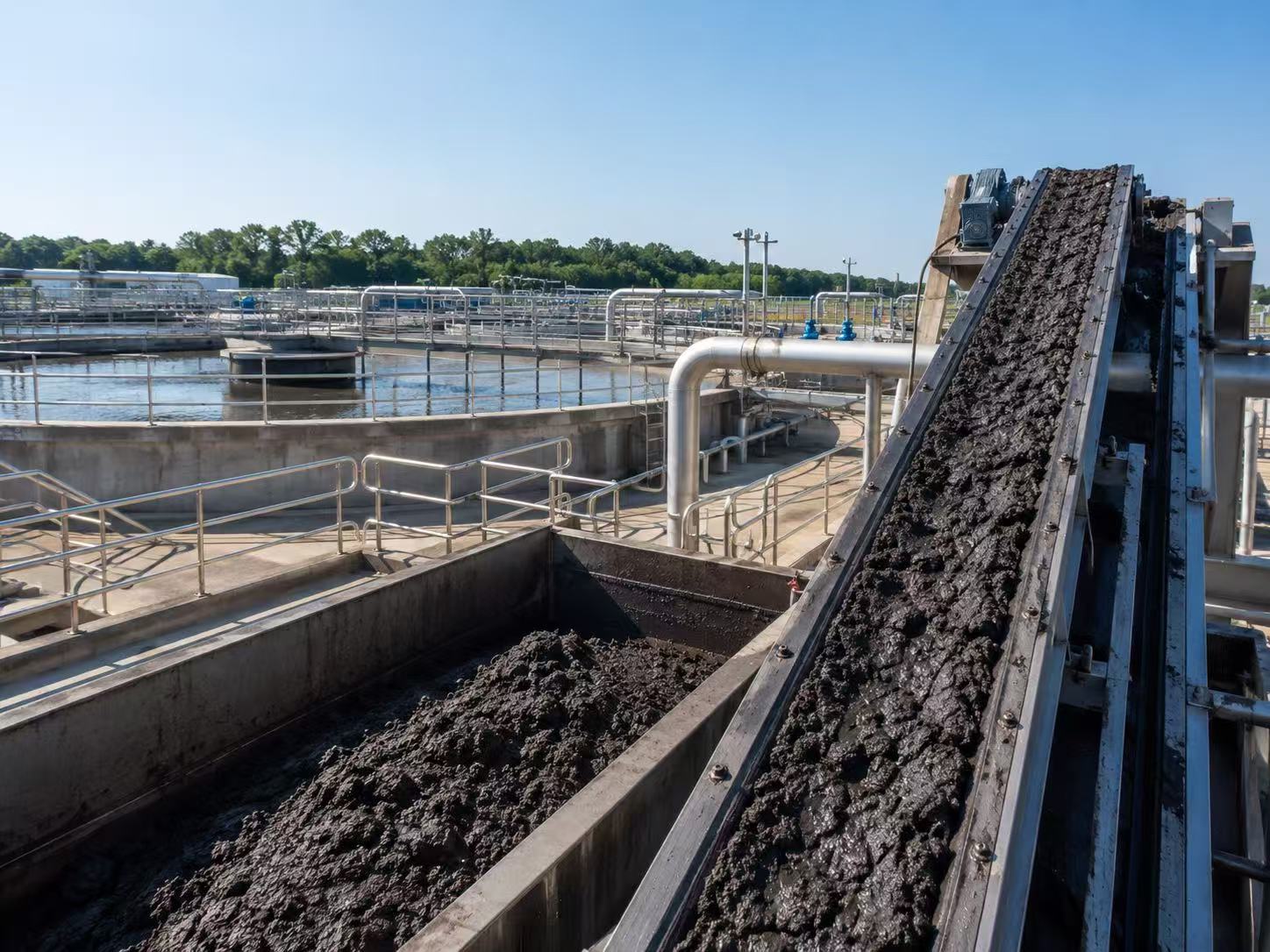

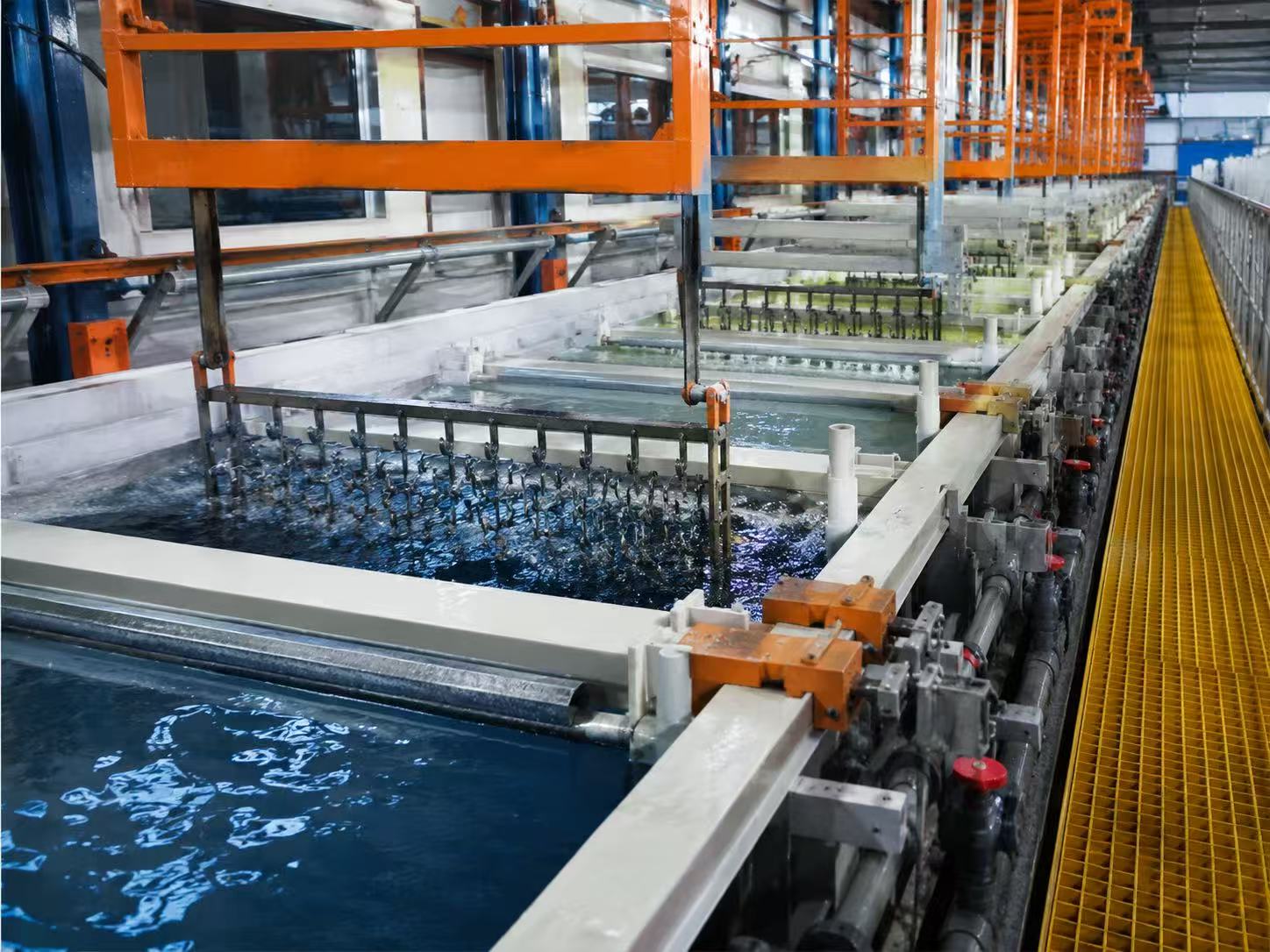

Non-woven filter cloth is manufactured by needle punching, melt blowing or thermal bonding synthetic fibers into integral filter materials. Needled non-woven filter cloth for plate and frame filter press is used for solid-liquid separation. Its 3D pore structure captures fine particles for clear filtrate. Filter cake is easy to peel off, and it withstands high-pressure filtration. Widely applied in sludge dewatering, tailings treatment, chemical powder filtration, electroplating and metallurgical slurry filtration.

Get a Free Quote Request Sample Technical Data

Product Description

Key Features

Stable filtration precision

Superior permeability and large dust capacity

Strong chemical resistance

Easy cake discharging

Customized functional modification

Cost-effective and eco-friendly

Technical Specifications

Parameter	Non-woven Filter Cloth	Custom Range
Areal weight	550 / 600 / 650 / 700 g/m²	Customizable on request
Air permeability	260–360 / 240–340 / 220–320 / 200–300 mm/s	Customizable on request
Tensile strength (warp)	≥1000 / ≥1000 / ≥1100 / ≥1100 N	Customizable on request
Tensile strength (weft)	≥1200 / ≥1200 / ≥1300 / ≥1300 N	Customizable on request
Tensile elongation	Warp ≤30%; weft ≤50%	Customizable on request
