Filter Cartridge

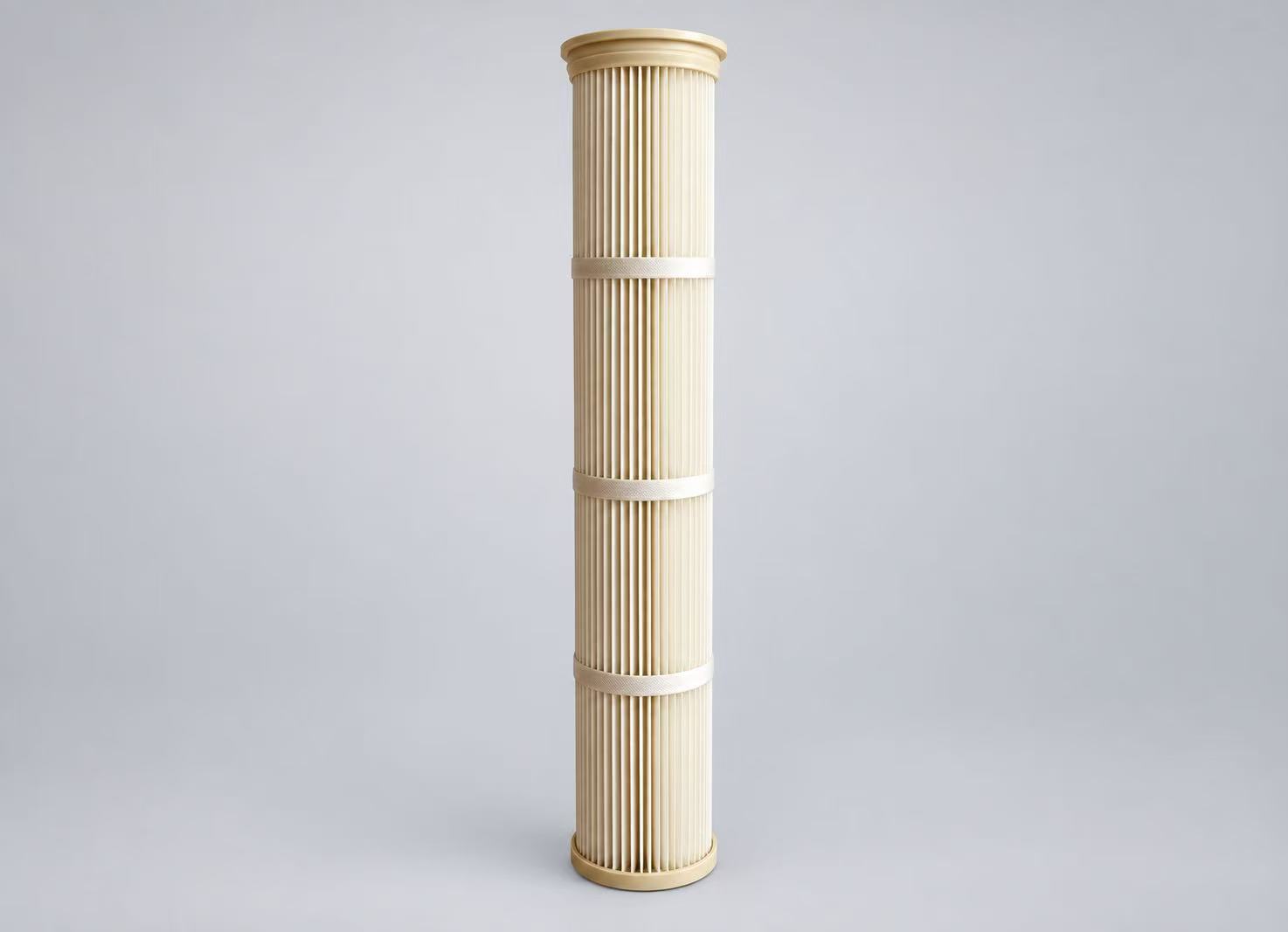

PTFE Laminated Polyester Filter Cartridge
Surface-filtration cartridge combining a polyester felt substrate with an expanded PTFE membrane for fine dust and easy cleaning.
Filter Cartridge Series
PTFE Laminated Polyester Filter Cartridge
PTFE laminated polyester filter cartridge uses high-density polyester needle felt as the substrate and a hot-pressed microporous expanded PTFE membrane as the filtration surface. Dust remains on the membrane instead of penetrating the fiber layer, reducing blockage and making pulse cleaning easier while the polyester base provides strength and toughness.
Base fabricHigh-density polyester needle felt
Surface membraneExpanded microporous PTFE membrane
Continuous working temperature≤160℃
Filtration rating0.1 μm
Filtration velocity0.6–1.2 m/min
Initial pressure drop250–500 Pa
Product Description
PTFE laminated polyester filter cartridge uses high-density polyester needle felt as the substrate and a hot-pressed microporous expanded PTFE membrane as the filtration surface. Dust remains on the membrane instead of penetrating the fiber layer, reducing blockage and making pulse cleaning easier while the polyester base provides strength and toughness.
Key Features
Surface filtration enables easy ash cleaning
Surface filtration enables easy ash cleaning
Excellent chemical resistance
Excellent chemical resistance
Strong mechanical durability
Strong mechanical durability
Low operating cost
Low operating cost
Technical Specifications
| Parameter | PTFE Laminated Polyester Filter Cartridge | Custom Range |
|---|---|---|
| Base fabric | High-density polyester needle felt | Customizable on request |
| Surface membrane | Expanded microporous PTFE membrane | Customizable on request |
| Continuous working temperature | ≤160℃ | Customizable on request |
| Filtration rating | 0.1 μm | Customizable on request |
| Filtration velocity | 0.6–1.2 m/min | Customizable on request |
| Initial pressure drop | 250–500 Pa | Customizable on request |
| Standard outer diameter | 120 / 130 / 150 / 165 mm | Customizable on request |
| Standard length | 660 / 1000 / 1200 / 1500 mm | Customizable on request |
| Cleaning method | Pulse compressed-air back-blow | Customizable on request |
| Typical service life | 1–3 years | Customizable on request |
Applications

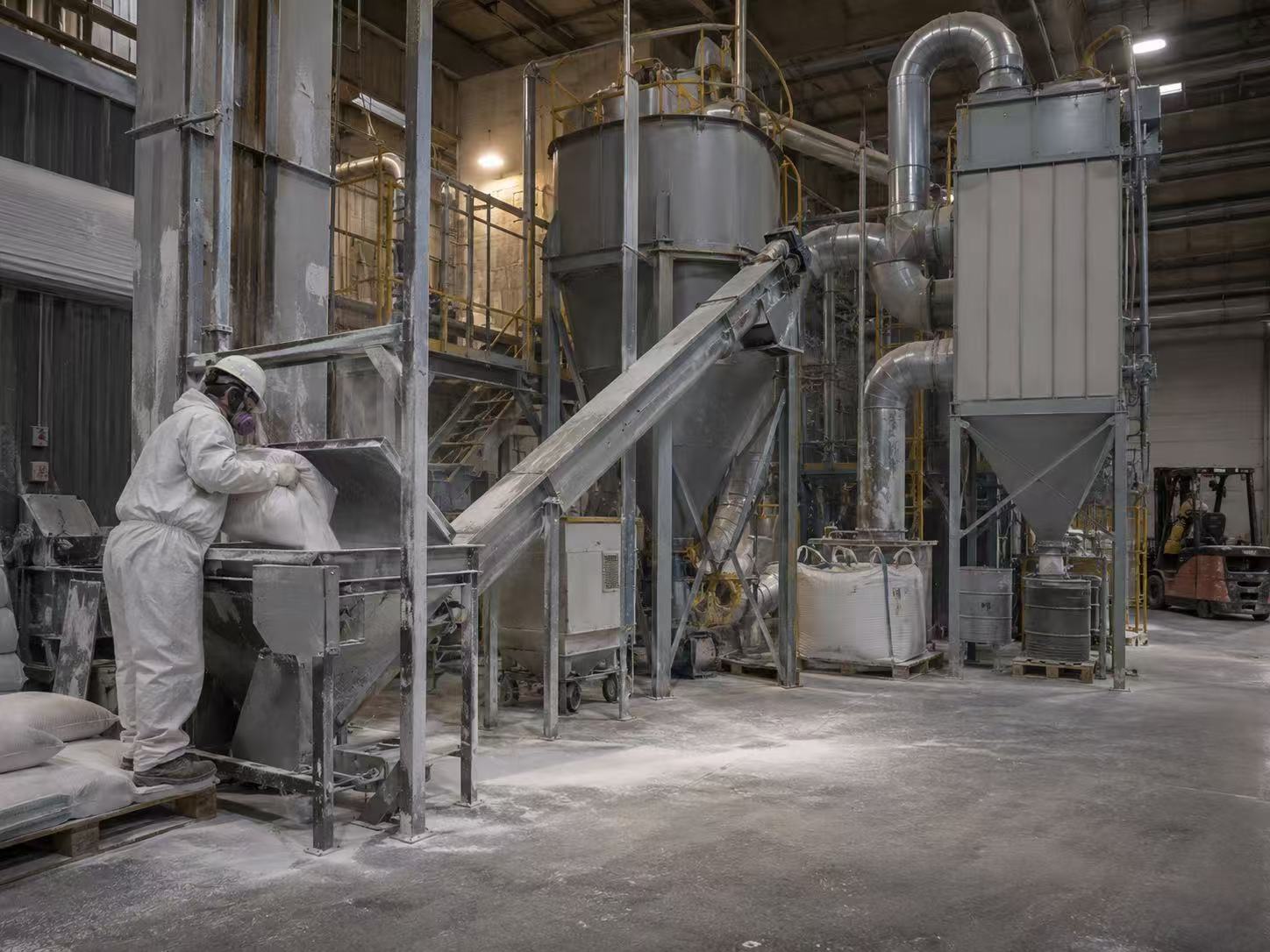

Industrial dust removal

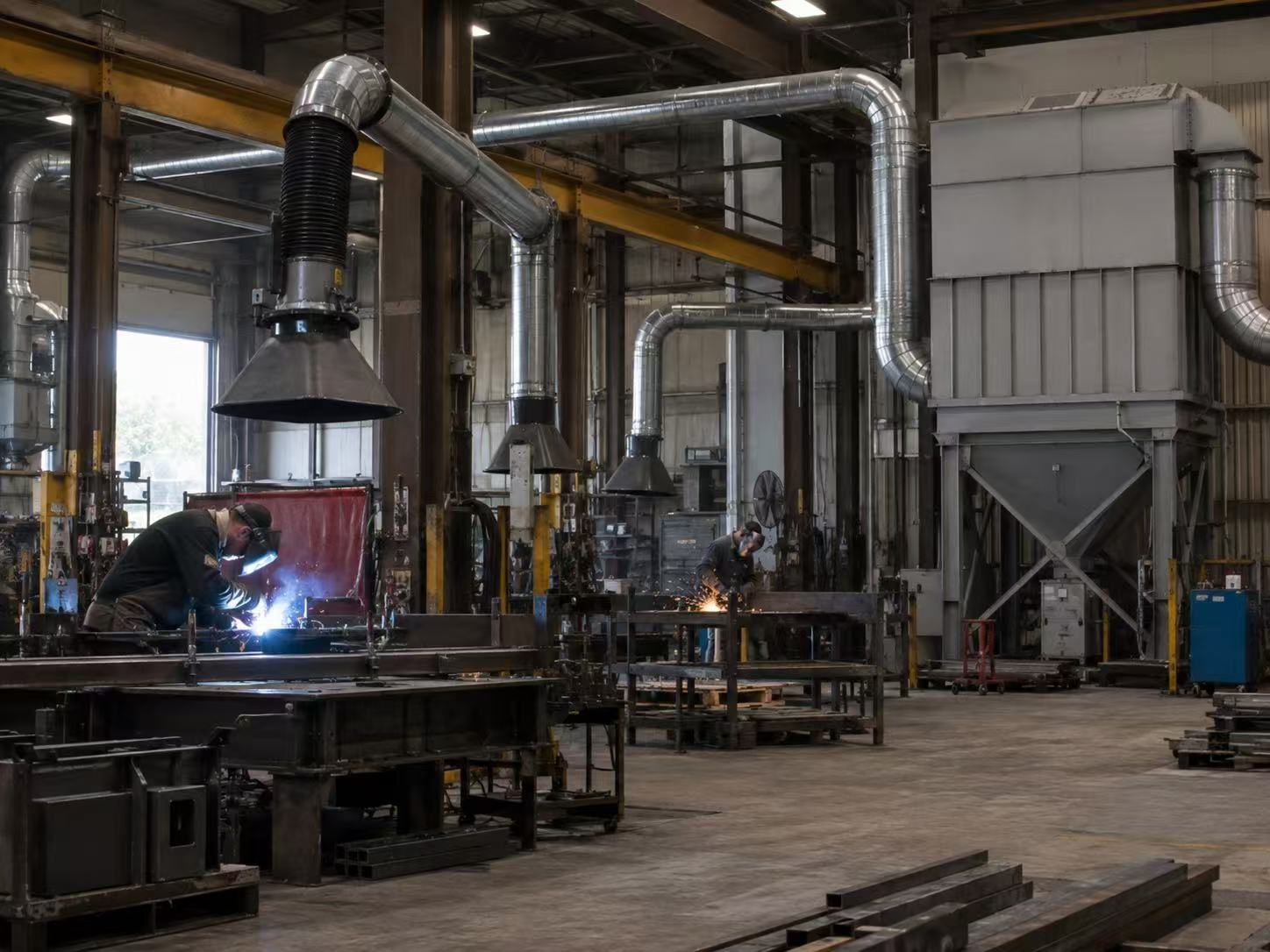

Fine powder recovery

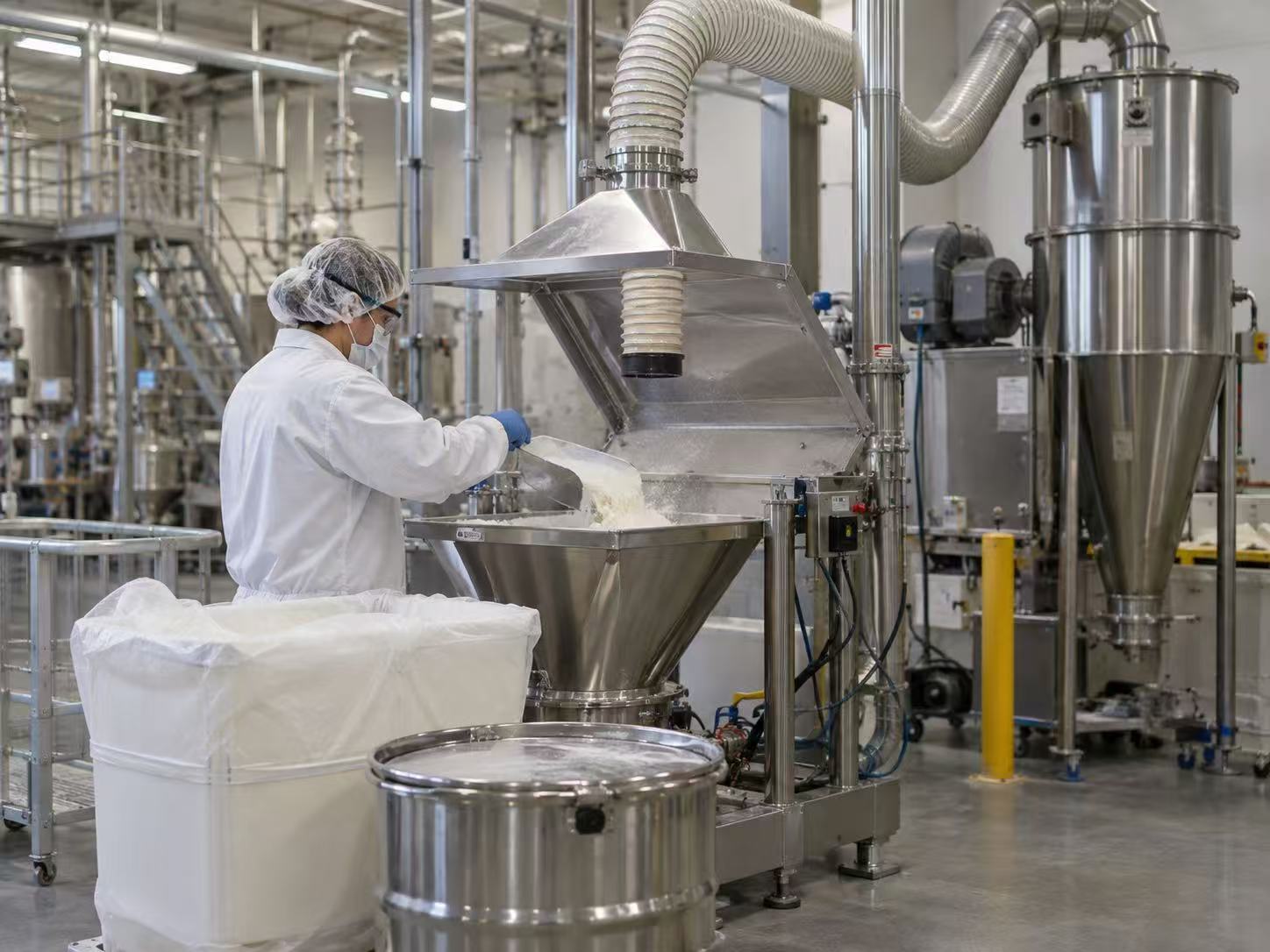

Food and pharmaceutical production

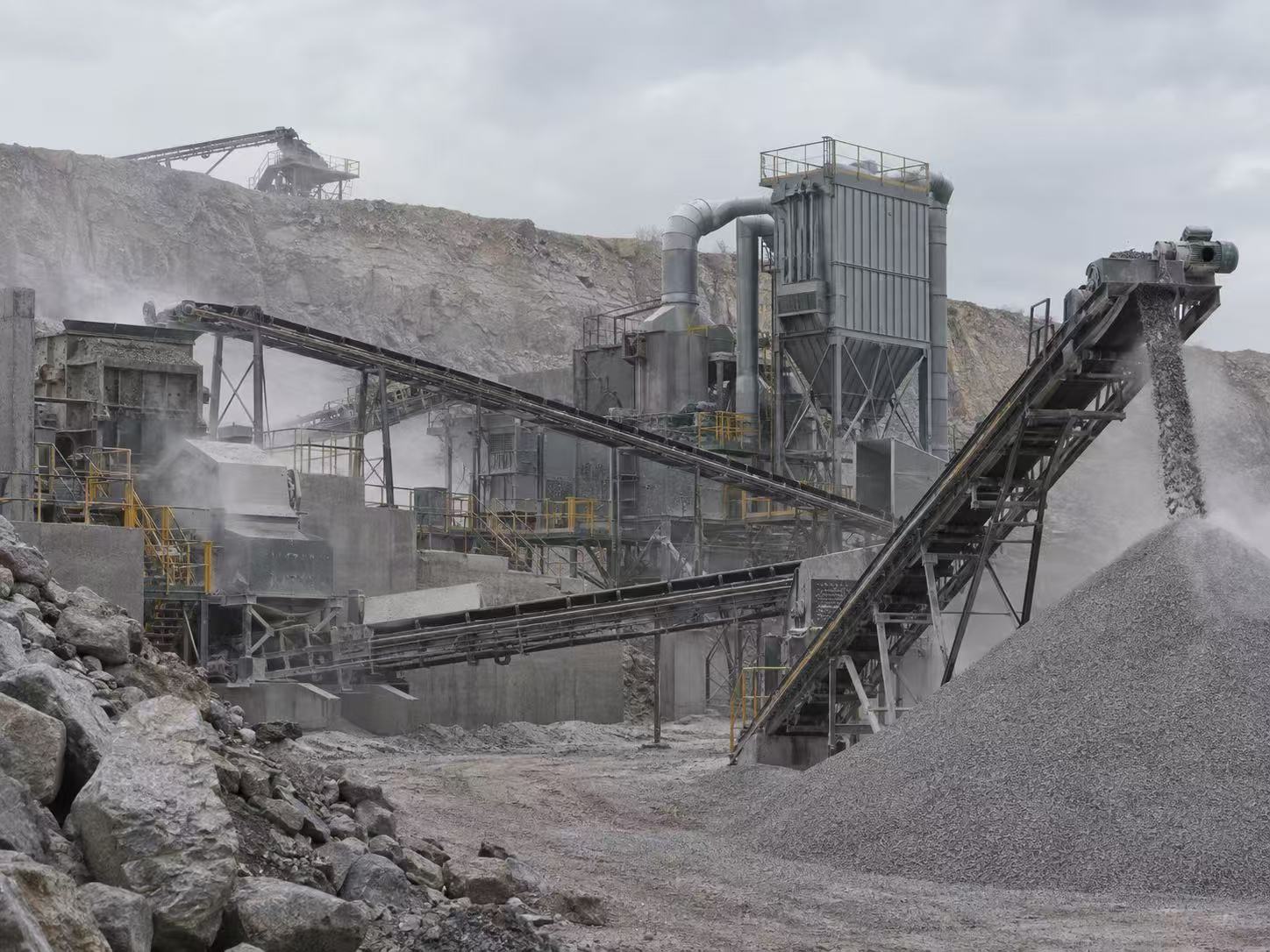

Building materials and mining
